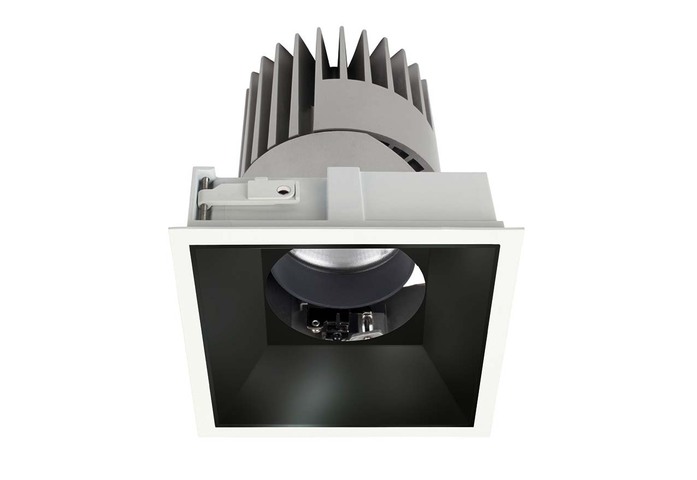

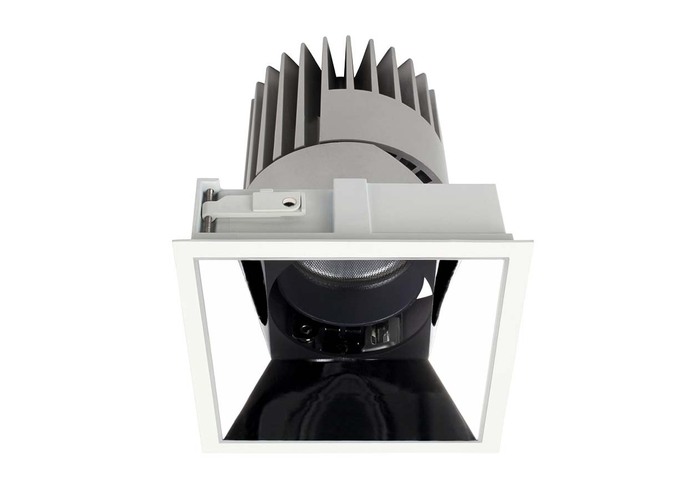

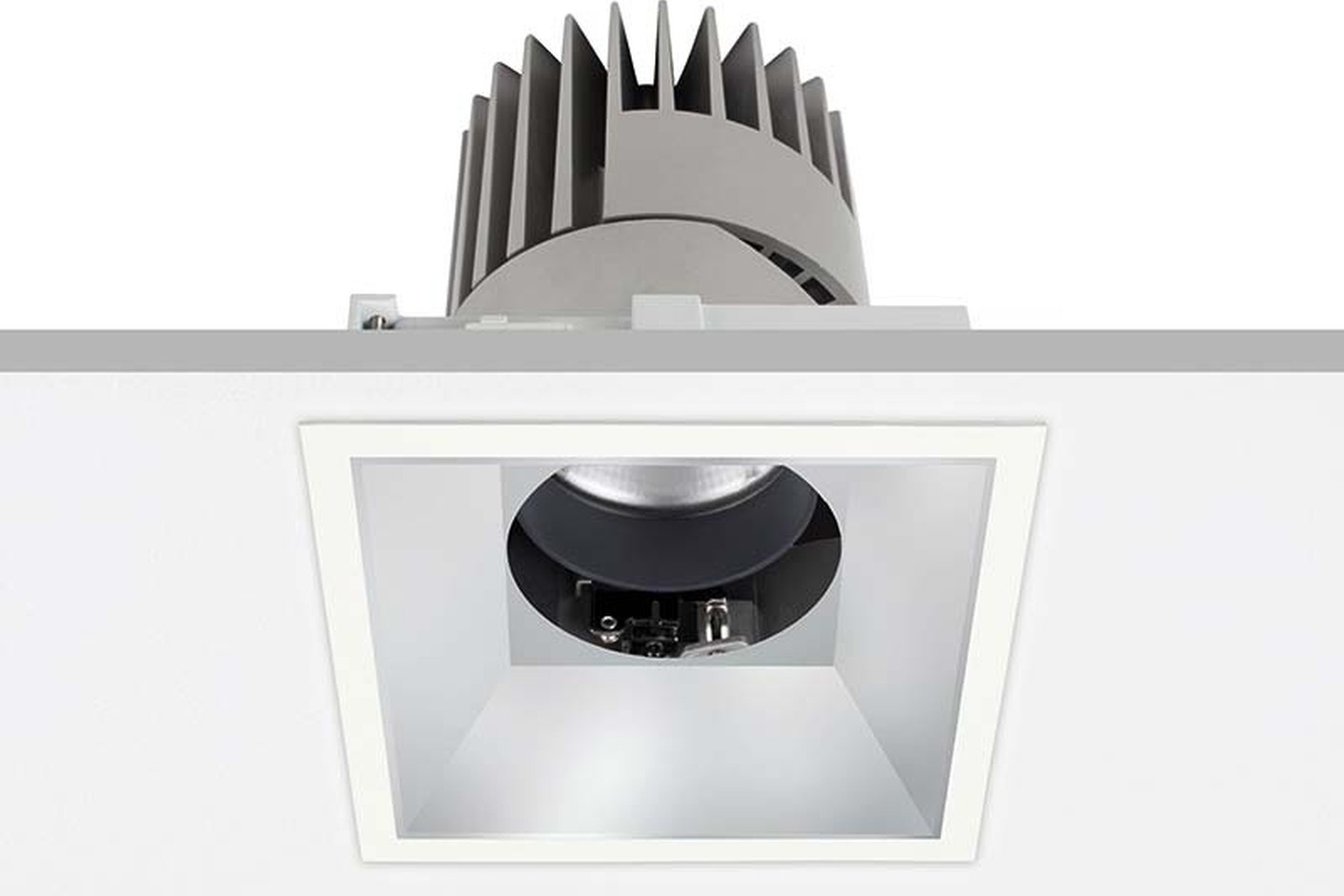

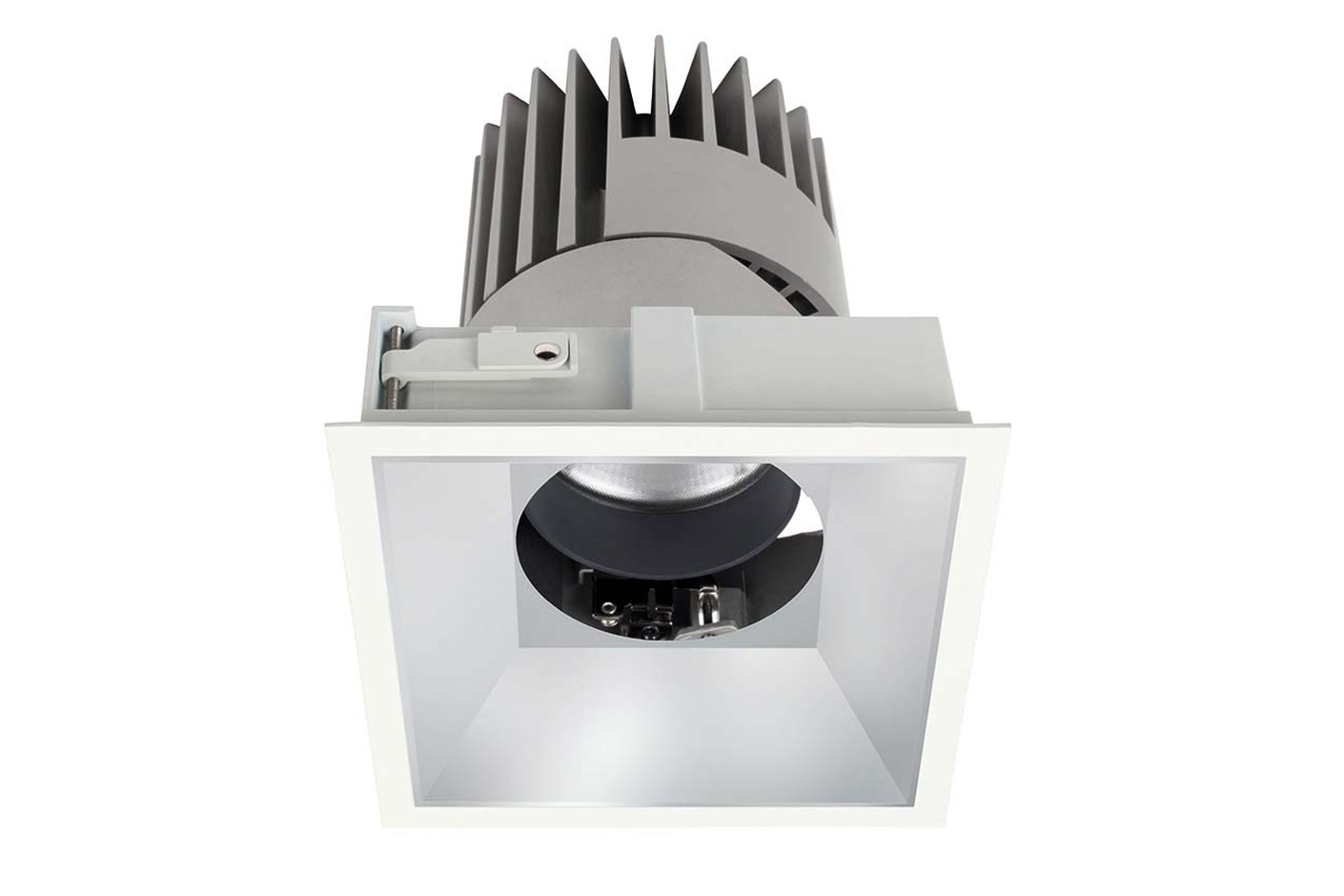

PERFORMANCE L STANDARD SPOT SQUARE

The PERFORMANCE SERIES product family offers downlights in two shapes and five different sizes. As a covering or trimless downlight in the shape of round or square, the optics can be selected - depending on the area of application and current requirements - with different beam angles from 20 ° to 60 ° in steps. In addition, the secondary reflectors are available as directional spotlights, downlights or wallwashers, which can be used as required and flexibly and easily exchanged or exchanged as required.

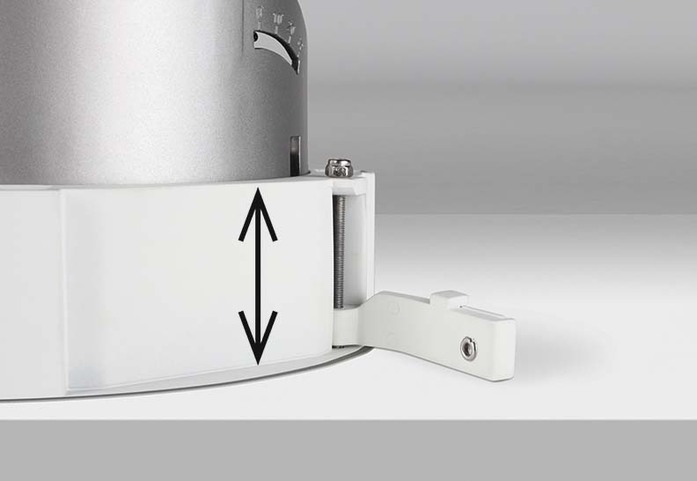

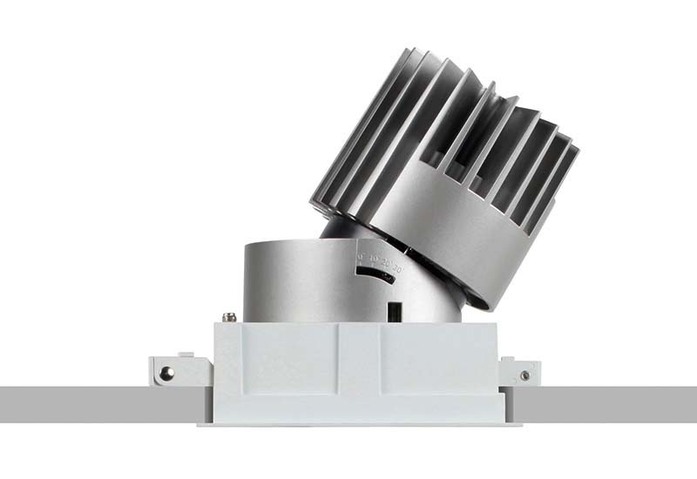

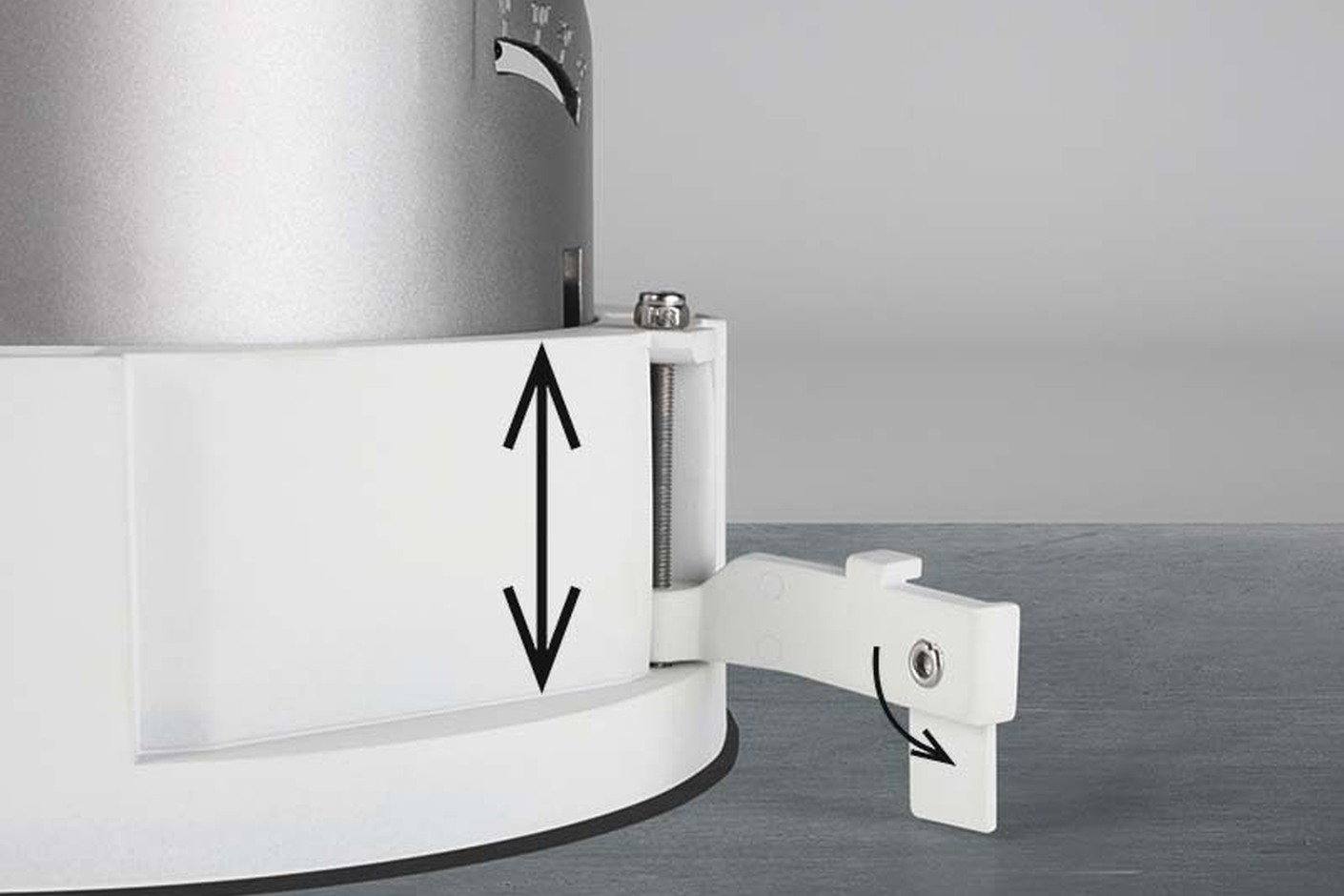

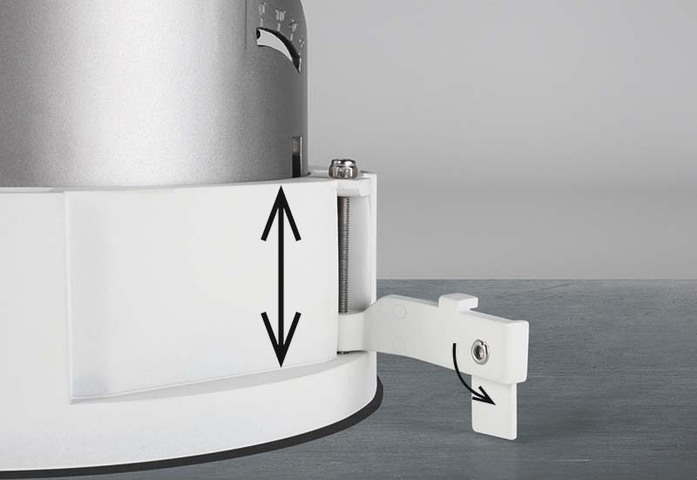

The selectable sizes range from PERFORMANCE XXS with a diameter of 55mm and an installation depth of 61mm to PERFORMANCE L with a diameter of 159mm and an installation depth of 190mm. All PERFORMANCE downlights are suitable for a ceiling thickness of 11mm to 25mm and can be flexibly adapted as required. The reflector, which can be rotated by 359 ° and swiveled by 30 °, ensures optimally directed light.

Technical data PERFORMANCE L STANDARD SPOT SQUARE

IP class:
IP40

Power supply:
25 Watt: 1x constant current 700mA/ 36V (power supply exclusive)
38 Watt: 1x constant current 1050mA / 36V (power supply exclusive)

LED power:
25 Watt / 38 Watt
(24,8/38 Watt actual power consumption)

Housing:
ring white

Reflector:

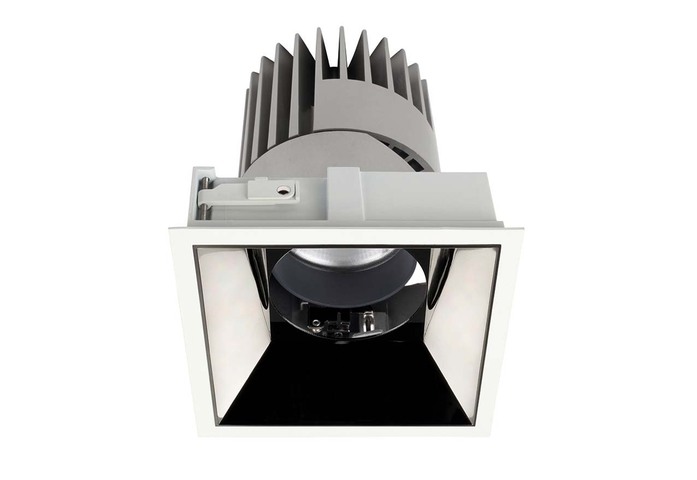

silver, white, black, specular, chrome black, gold

Dimmable:
with special constant current dimmer or constant current driver (order power supply separately)

Color temperature:
Neutral white 4000K
Warm white 3000K

Beam angle:
20°, 35° and 60°

Luminous flux:
Without anti glare grid: 700mA neutral white 2200Lumen
1050mA neutral white 3200 Lumen
700mA warm white 2100 Lumen
1050mA warm white 3000 Lumen
With anti glare grid: 700mA neutral white 1500 Lumen
1050mA neutral white 2200 Lumen
700mA warm white 1450 Lumen
1050mA warm white 2100 Lumen

CRI: 80
UGR: xtagstartz19 with anti-glare grid as an option <16

Dimensions:
Ceiling cutout – 148x148mm
External dimension – 159x159mm
Height – 190mm
