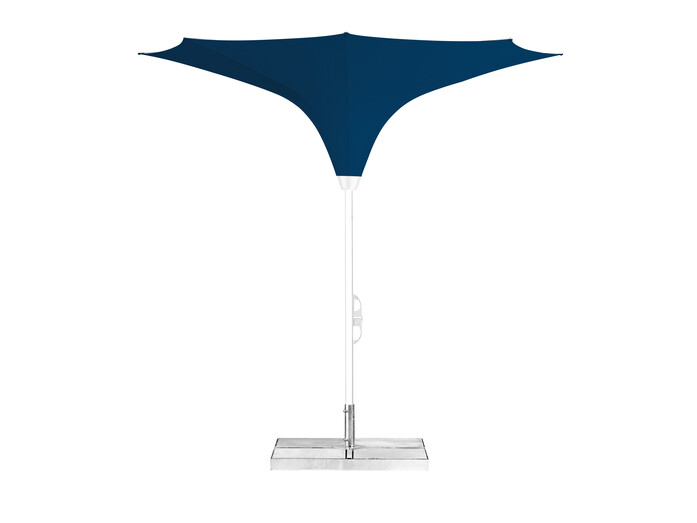

Tulip Umbrella Type EH

Tulip umbrellas, with their unique shape as round or square “flower silhouettes,” can be arranged in groups or set up to stand out as an individual design. This uniqueness can be further emphasized with stylish or personalized printing on the membrane. When it rains, the water is drained through the center pole either into the ground or via a drainage system, depending on the given conditions.

Cover

The cover is made up of individual segments which are screwed to the frame by Sterling Steel hooks at the top and by rust-proof screws at the ends of the spokes. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions.

Anchor

• Frame base to be loaded with concrete blocks

• Steel plate

• Ground tube

Printing

• Digital print

• Screen print

• Dispersion dye print

Mast

Umbrella spokes are made of aluminium T-sections of 40 x 40 x 4 mm. The support Struts are made out of aluminium bars 30 x 20 x 2 mm. The mast is made of a round aluminium section of 60 x 3 mm in diameter. The aluminium telescope has section dimensions of 30 x 30 x 3 mm. The crown is made of PVC. All parts are screwed together and the frame is chromium-plated.

Mechanics

The tension mechanism of the umbrella is operated by an aluminium handle that controls an inner pulley system.

Benefits

• Opening and closing with a single-handle pulley system

• All material are water and corrosion resistant

• All parts attached by screws

• Cover zip allows for easy replacement

• Water can be drained below ground level for permanent installations

• Safely handles winds up to 40 km/h (with the proper bases)

Accessories

• Transport case

• Protective sleeve with telescopic pole

• Top cover (net or heater)

MDT-TEX 260
100% polyester fabric, approx. 260 g/m2, UV-colour resistance: 6/8, water column pressure: 700 mm, Flame retardant: DIN B1 - DIN 4102-1, M1, NFPA 701 - flat and folded. Coating: polyurethane, Suture material: polyester

Sizes: 3 x 3 m, ø 3 m
