Modular shadow
6/19/2017
MDT-tex has teamed up with Grimshaw Architects to develop a highly flexible canopy system.
Stylepark-ID: | 01.4545.00007 |
---|---|
Categories: | Garden furnishings › sunshades / awnings |

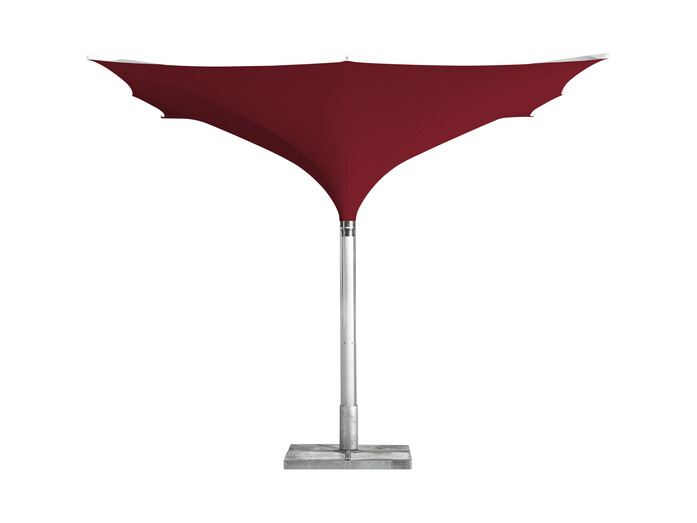

Continuous advancements have been made to the MDT tulip umbrella,
which can be set up in any way you see fit – as a standalone design,
artistically in a group, or as part of an eye-catching brand
presentation. Numerous effects allow you to create new worlds for people
to experience and enjoy. The tulip umbrella can be illuminated in any
color to create the desired atmosphere and can also be custom-printed to
enhance events both public and private. For food and beauty promotions,
the umbrella is also available with fragrance emitters. Rainwater flows
off between the center pole and the Plexiglas and can be drained either
into the ground or, in the mobile version, above ground, depending on
situation.
Cover
The cover is made up of
individual segments which are screwed to the frame by Sterling Steel
hooks at the top and by rust-proof screws at the ends of the spokes. The
cover is replaceable and is fade, light and water resistant. It is
designed to withstand all weather conditions.
Anchor
• Frame base to be loaded with concrete blocks up to 400 kg
• Steel plate
• Ground tube with integrated water pipes
• Foldable adapter
• Steel ground pin
• Support plate
Printing
• Digital print
• Screen print
• Dispersion dye print
Mast
Umbrella
spokes are made of rectangular aluminium sections of 40x20x3 mm. The
mast is made of a round aluminium section of 80-100x3 mm in diameter.
The aluminium telescope has section dimensions 45x45x3 mm. The top plate
and the crown are made with U-profiles out of aluminium to house the
struts. All parts are screwed together and the frame is powder coated
(Polyester powder ca. 80 μ).
• white RAL 9010 (Standard)
• other RAL colors on request
Mechanics
The gearbox and the spindle are contained in the centre pole and can be operated by handle or using a motor.
Benefits
• Opening and closing by hand crank
• All materials are water and corrosion resistant
• All parts attached by screws
• Maintenance-free gear box
• Lighting available
• Cover zip allows for easy replacement
• Easy installation with the foldable adapter
• Water can be drained below ground level for permanent installations
• Safely handles winds up to 60 km/h (with the proper bases)
Accessories
• Various lighting options
• Transport case
• Protective sleeve with telescopic pole
• Event Platform and MDT Flex-Bar
• Electric engine for opening and closing (also available with wind-watchers)
• Top cover (net or heater)
MDT-TEX 260
100% polyester fabric, ca. 260 g/m2, UV-colour resistance: 6/8, water column pressure: 700 mm, Flame retardant: DIN B1 - DIN 4102-1, M1, NFPA 701 - flat and folded. Coating: polyurethane, Suture material: polyester
MDT-TEX 300
100 % polyacrylic fabric, approx. 300 g/m2, UV-colour resistance: 4/5, water column pressure 370 mm, suture material: polyester
Sizes: 4x4m, 5x5m, 6x6, ø4m, ø5m, ø6m
