Spannschirm Typ S16

The MDT aluminum umbrella S16 convince with his optical and technical simplicity. The smooth-running sliding clamping system makes opening and closing possible in seconds. The adjustment of the umbrella by means of an aluminum grip over head height, for a obstacle and child-free operation.

Frame

Struts consist of aluminum rectangular profiles 30 x 20 x2 mm. The mast consists of an aluminum round tube profile ø 60 x 3 mm with a 3-fold aluminum ring, aluminum telescope with the dimensions 30 x 30 x 3 mm. The hub is made of high-strength aluminum and contains connections for the struts. All parts are bolted together. The frame, the end caps, the wreath, the cover and the handle (anthracite) is powder-coated (polyester powder about 80 μ).

• white RAL 9010 (Standard)

• Anthracite DB 703 MT GL PE

Mechanic

The tension mechanism of the umbrella is operated by means of an aluminum handle. This controls the internal telescope system with a zinc-coated pull strap. This optimal balanced tensioning mechanism ensures easy closure of the umbrella.

Cover

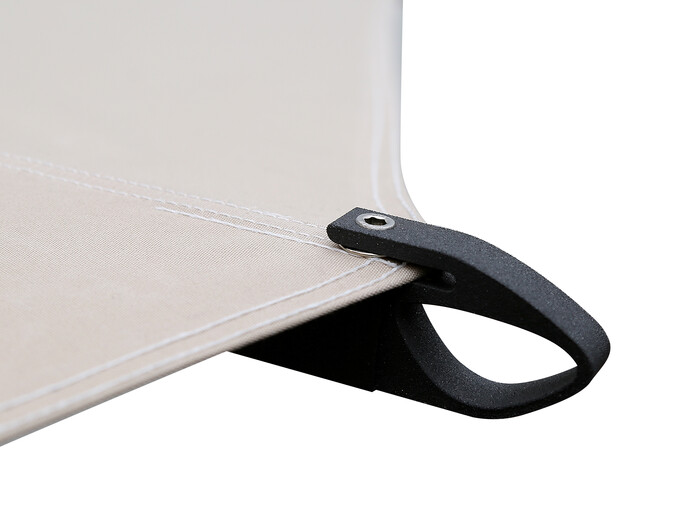

Cutting consists of individual segments; The fabric is attached to the ends of the struts with stainless screws on the aluminum end cap. Interchangeable, colourfast, resistant to light, water and weather, tear and abrasion resistant, resistant to environmental influences.

MDT-tex® 260
100% polyester fabric, ca. 260 g/m2, UV-colour resistance: 6/8, water column pressure: 700 mm, Flame retardant: DIN B1 - DIN 4102-1, M1, NFPA 701 - flat and folded. Coating: polyurethane, Suture material: polyester

optional
MDT-tex® 300
100 % polyacrylic fabric, approx. 300 g/m2, UV-colour resistance: 4/5, water column pressure 370 mm, suture material: polyester

Benefits

• Opening and closing of the umbrella by means of ALU handle, which is attached to the hub.

• All materials are resistant to the effects of water corrosion

• Telescopic pole allows the umbrella to open and close above table height

• Full aluminium umbrella

• Electric cables are hidden from sight within four chamber column inside the centre mast

• All struts in the open state replaceable

• All umbrella parts recyclable

• Designed to withstand wind speeds up to 60 km/h (with the proper ground anchorage)

Accessories

• LED lighting

• Protective sleeve with a telescopic pole

• Rain gutter to connect adjoining umbrellas (only square umbrellas)

• Cover for frame base

Sizes: 2,5 x 2,5 m, 3x 3 m, ø 3m
