EXTENSION

Structure

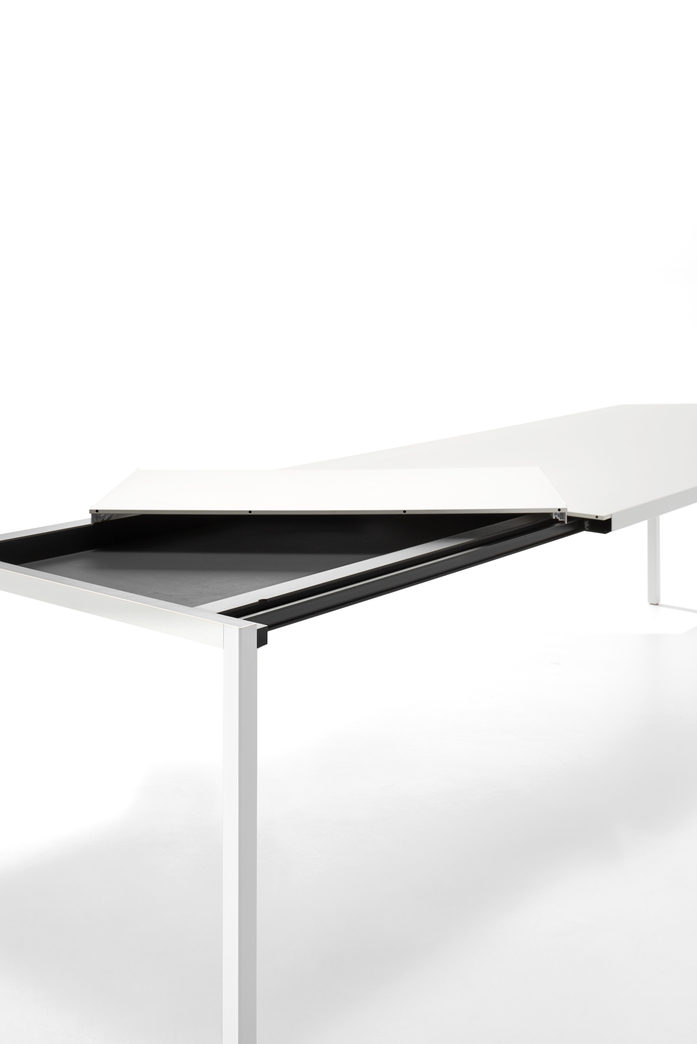

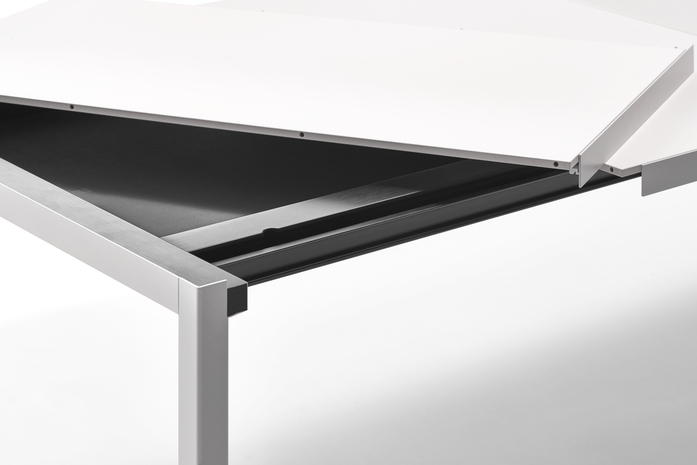

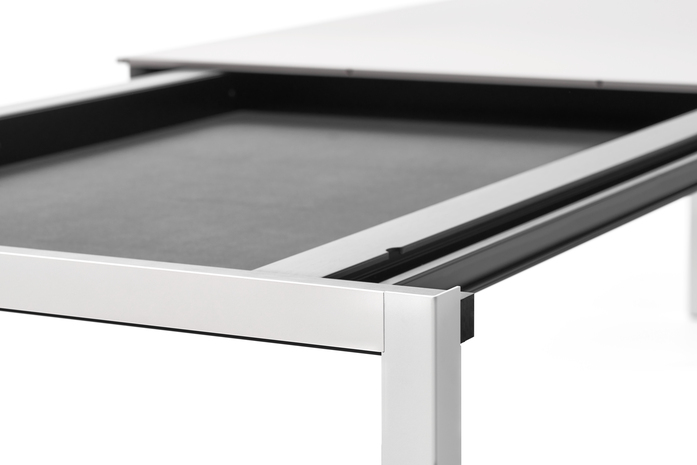

The legs and perimeter frame are in extruded aluminium, available in epoxy powder matt painted version in white, medium grey and graphite grey. The load-bearing frame and extensible mechanism, in black anodized aluminium extrusion, slides on wheels with ball bearings. The bridge pulls out laterally from one side. Two levers on the undertop rails make it possible to lock the push-in and pull-out operations. The extension tops slide into an epoxy powder matt painted tray in graphite grey, equipped with non-scratch lining.

Tops

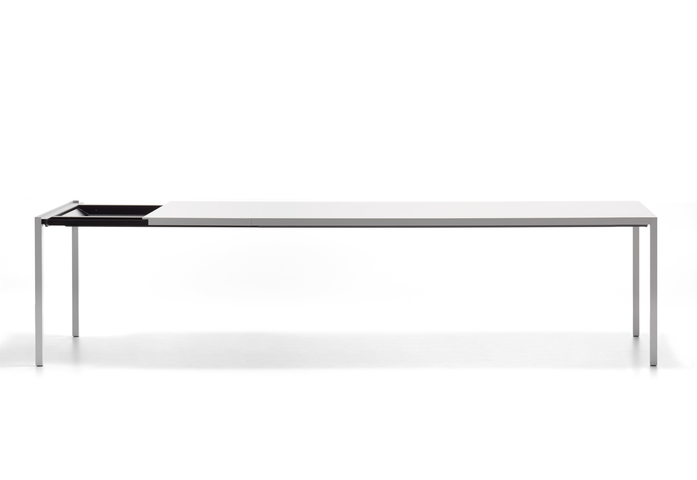

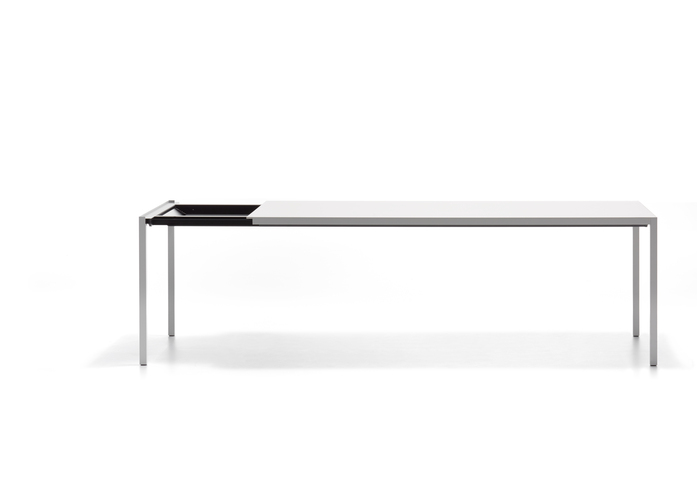

The laminate tabletops and extension tops in Fenix are built-in and are reinforced internally by 8mm thick aluminium sheets. Available in the matt versions: white, black, medium grey. The system’s flexibility is emphasized by the presence of one or two extension tops measuring 50cm each and resting on the frame’s slide rails; according to the customer’s needs, the nominal length of the table can be increased from 50 to 100 cm. All the tables listed in the price book are available with one* or two extension tops, and please refer to the subsequent page.

Dimensions

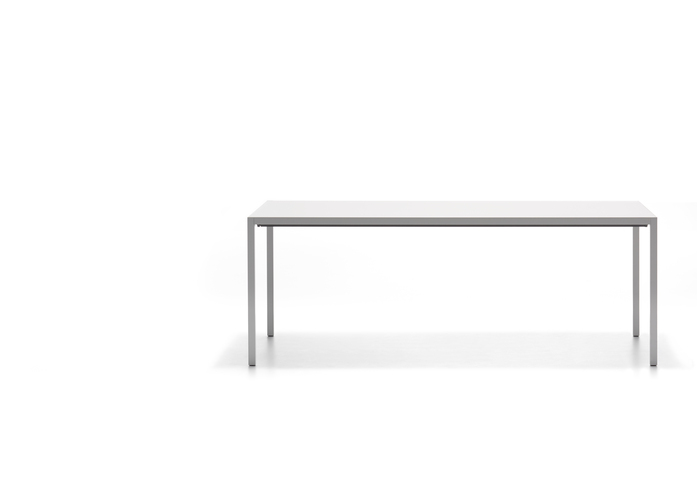

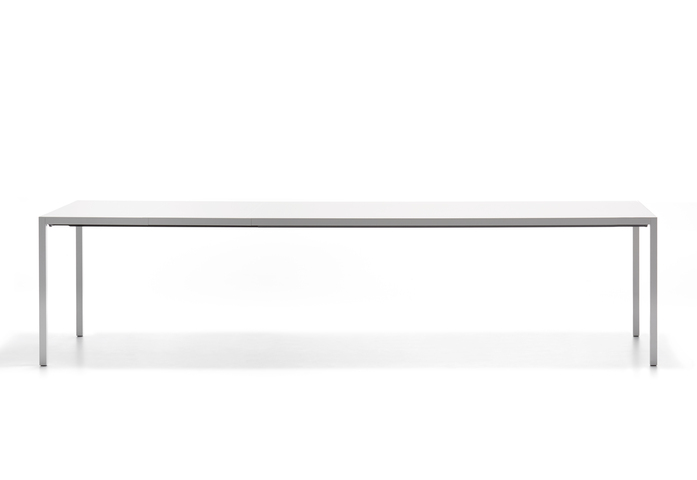

Rectangular tables available with a 90 and 100cm (real 98cm) depth, a 160, 180 or 200cm length, and a 72 or 75cm height. The legs with a section of 35x35mm come with a central steel support bar. The perimeter frame measures 35mm in height.

Notes

Extension is recommended for interior use only.

Dimensional tolerance: the size of the top is 1mm smaller per side than that of the frame.
