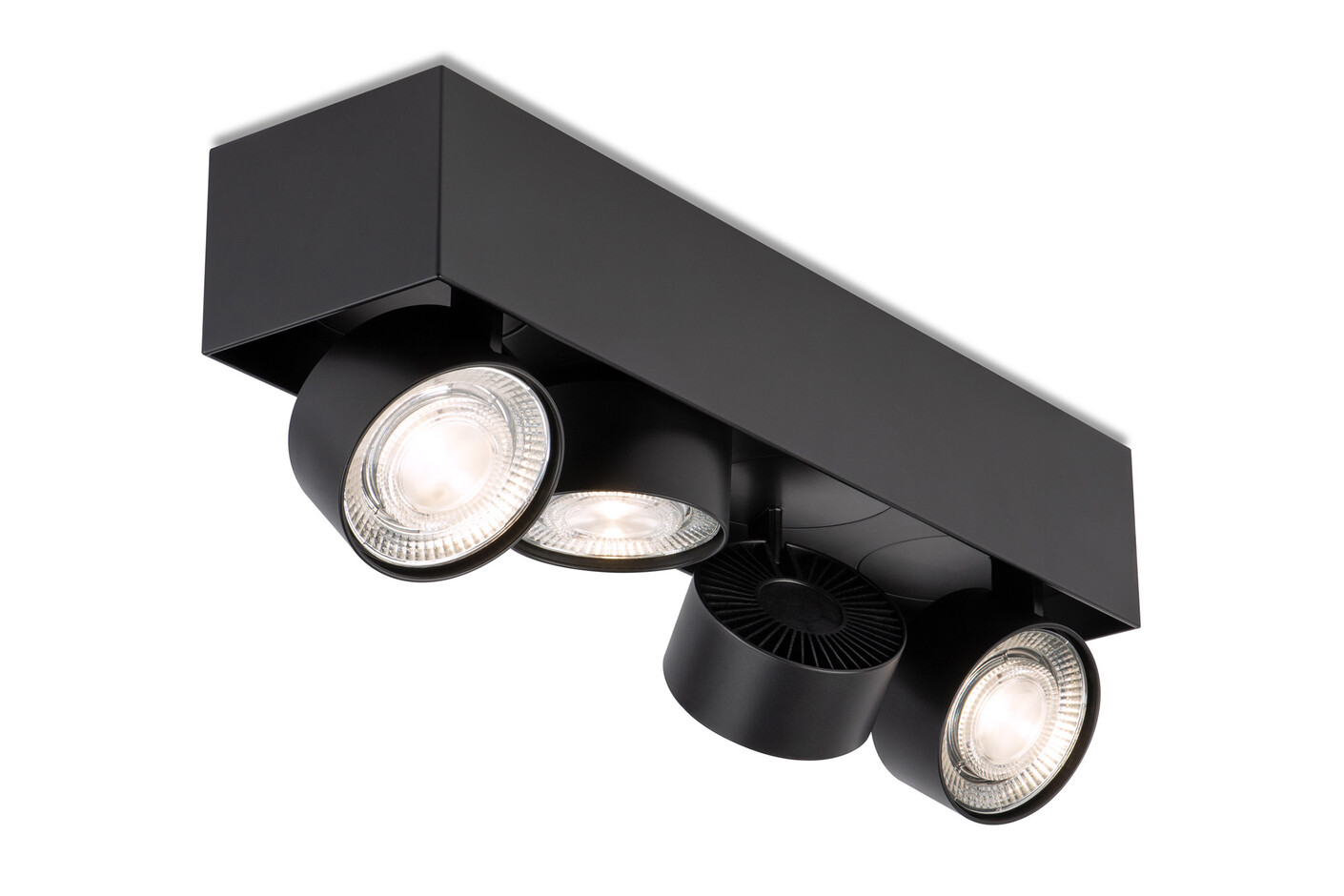

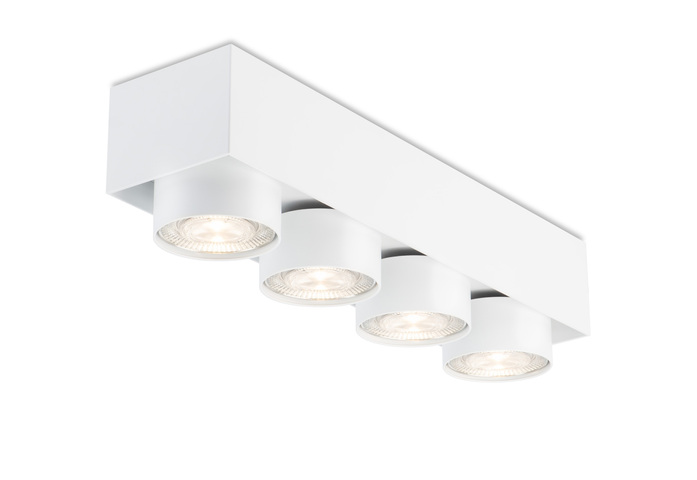

wittenberg 4.0 surface-mounted wi4-ab-4e-hb

»wittenberg 4.0« - mawa's follow up series of its successful »wittenberg« series. »wittenberg 4.0« follows that tradition and fills the huge footsteps confidently with an even more compact structure, whose filigree housing is reduced to the technically feasible - of course without visible screws and cable. With an approximately doubled light output and improved color rendition, the spotlight convinces by its large light emission surface with excellent glare control. The special optics with three different light distribution characteristics can be replaced easily using a vacuum cup or a silicone pad. If required a honeycomb grid could be used for additional glare reduction. The whole spotlight can be demounted rapidly thanks to a patented bayonet.

colors:

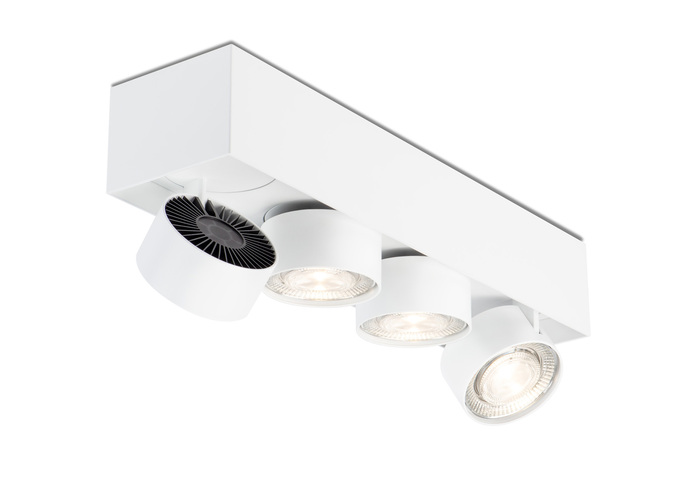

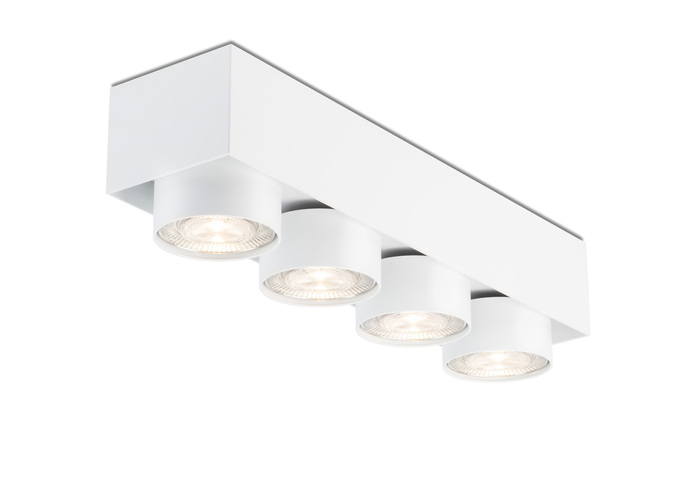

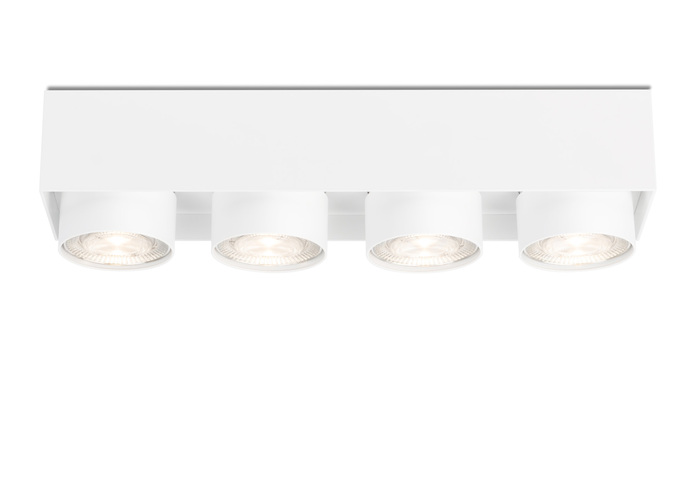

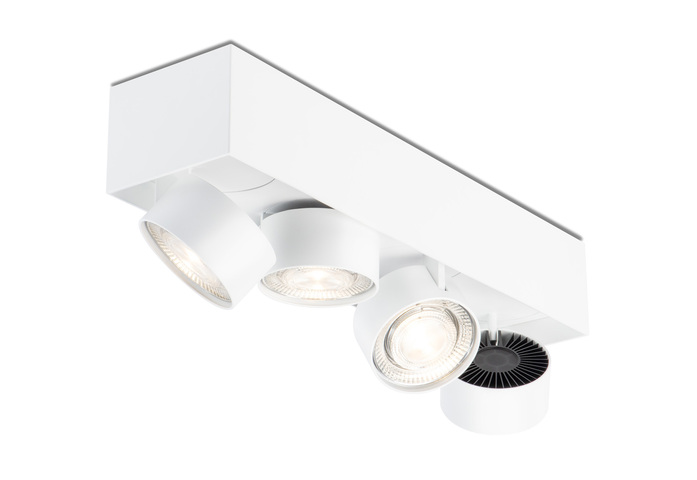

RAL 9016 white matt

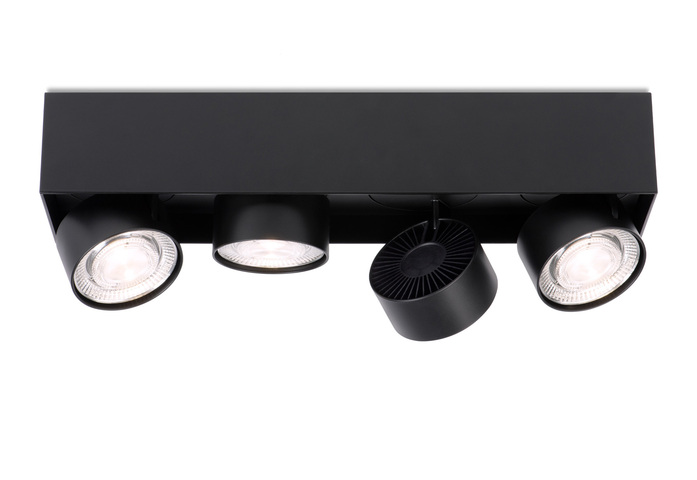

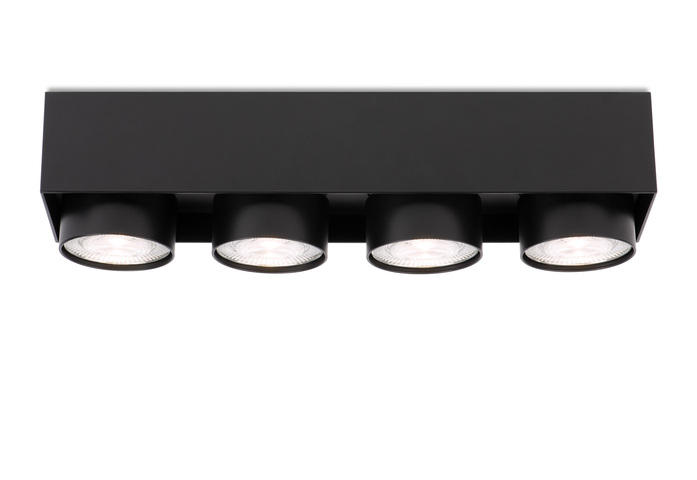

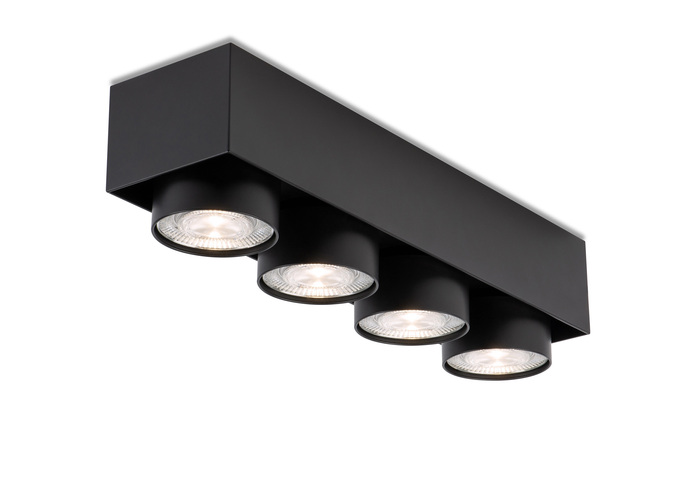

mawa 9005 black matt
dualcolor on request (heads finishes and rotating plates in chrome, copper, brass)

beam angle:
spot 12°, medium 24° or flood 38° (exchangeable by means of vacuum cup or silicone pad)

Dimming options:
dimmable 1-10 V
DALI dimmable
trailing and leading edge dimmable

converter:
included

Lamp:
LED, 12,7 W, 700 mA, CRI typ. 92,
2700K/1100lm,
3000K/1200lm,
4000K/1350lm,
>50.000h, EEI = A++ - A,
Retail Lighting and high CRI 98 on request
