mawa design

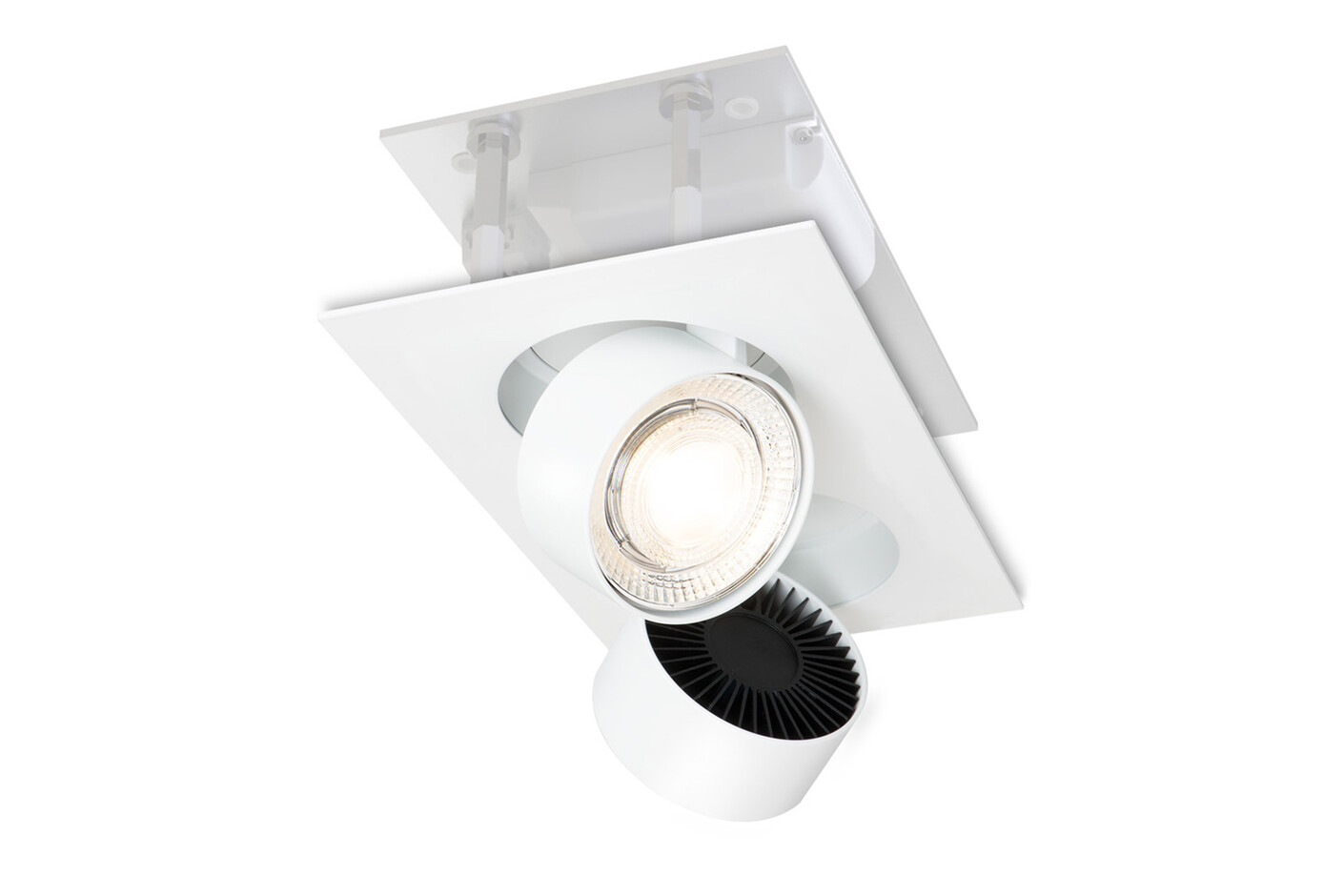

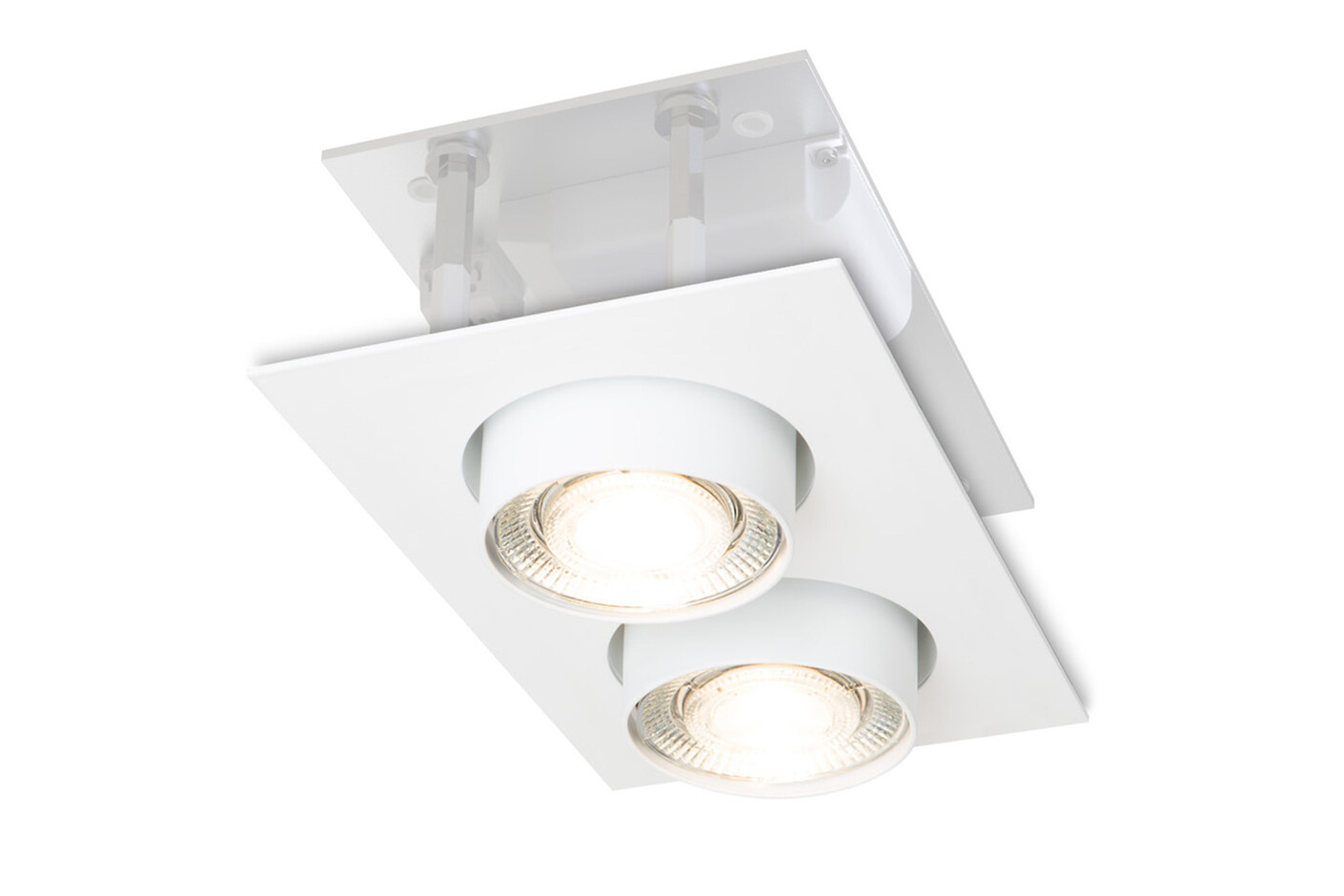

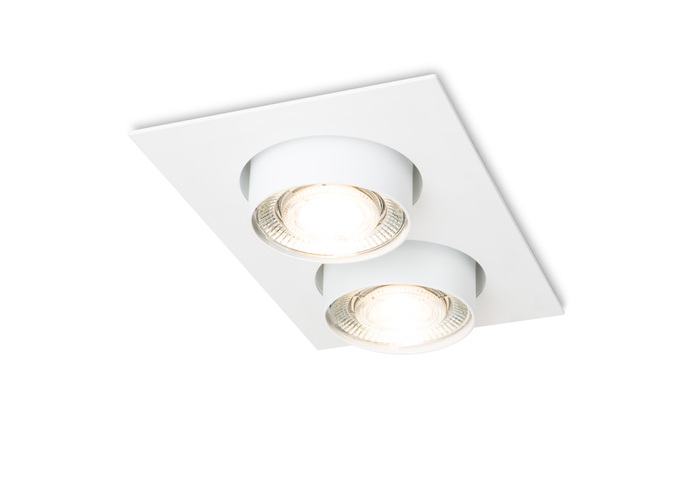

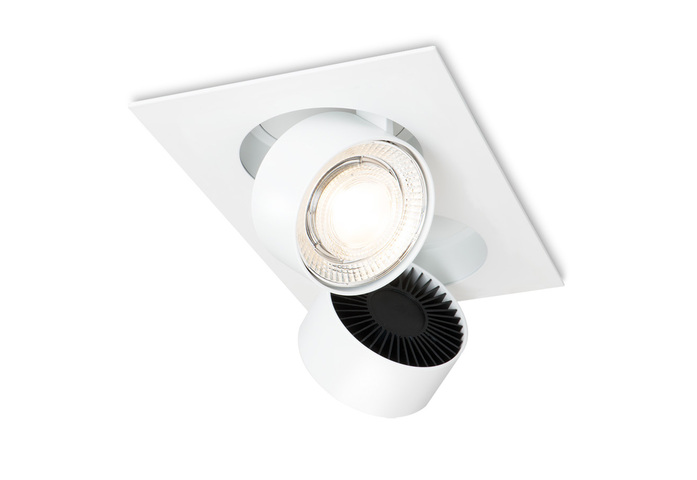

wittenberg 4.0 recessed concrete spotlight wi4-be-2e

»wittenberg 4.0« - mawa's follow up series of its successful »wittenberg« series. »wittenberg 4.0« follows that tradition and fills the huge footsteps confidently with an even more compact structure, whose filigree housing is reduced to the technically feasible - of course without visible screws and cable. With an approximately doubled light output and improved color rendition, the spotlight convinces by its large light emission surface with excellent glare control. The power supply components fixed on the technic board will be mounted directly into the concrete cut. The whole spotlight board is adjustable to the ceiling level through distance bolts. The whole spotlight can be demounted rapidly thanks to a patented bayonet.

colors:
RAL 9016 white matt
mawa 9005 black matt

beam angle:
spot 12°, medium 24° or flood 38° (exchangeable by means of vacuum cup or silicone pad)

Dimming options:
dimmable 1-10 V
DALI dimmable
trailing and leading edge dimmable

converter: included

Lamp:
LED, 12,7 W, 700 mA, CRI typ. 92,
2700K/1100lm,
3000K/1200lm,
4000K/1350lm,
>50.000h, EEI = A++ - A,
Retail Lighting and high CRI 98 on request
