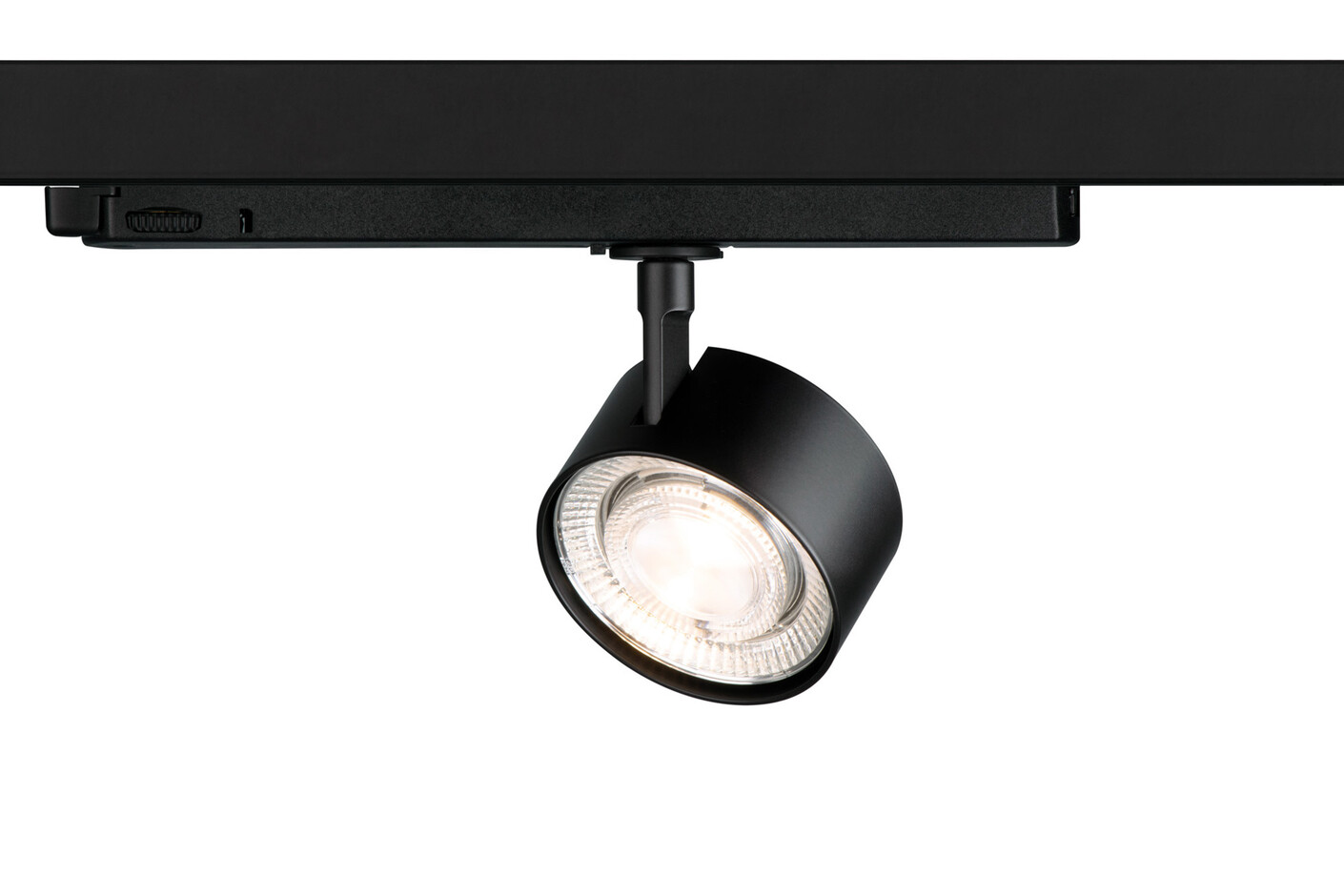

wittenberg 4.0 contact track spotlight wi4-str2

wittenberg 4.0 contact track spotlight wi4-str2

»wittenberg 4.0« - mawa's follow up series of its successful »wittenberg« series. »wittenberg 4.0« follows that tradition and fills the huge footsteps confidently with an even more compact structure, whose filigree housing is reduced to the technically feasible - of course without visible screws and cable. With an approximately doubled light output and improved color rendition, the spotlight convinces by its large light emission surface with excellent glare control. The special optics with three different light distribution characteristics can be replaced easily using a vacuum cup or a silicone pad. If required a honeycomb grid could be used for additional glare reduction. Track-mounted spotlight »wi4-str« for Eutrac 3 Phase power track deliverable with Eutrac UniCompact Adapter or fully integrated Eutrac in-trac. Custom light colors and high CRI 98 available upon request.

colors:
RAL 9016 white matt
mawa 9005 black matt

beam angle:
spot 12°, medium 24° or flood 38° (exchangeable by means of vacuum cup or silicone pad)

Dimming options:
switchable (230 mm adapter length)
DALI dimmable (255 mm adapter length)
Casambi Bluetooth dimmable (228 mm adapter length)

converter: included

Lamp:
LED, 12,7 W, 700 mA, CRI typ. 92,
2700K/1100lm,
3000K/1200lm,
4000K/1350lm, >50.000h, EEI = A++ - A,
Retail Lighting and high CRI 98 on request

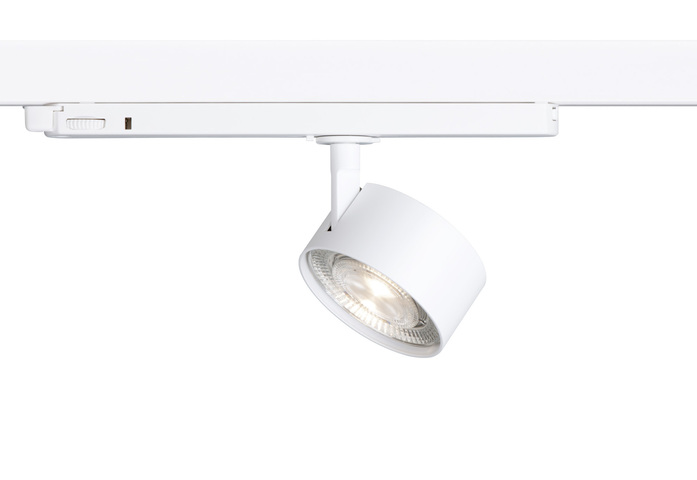

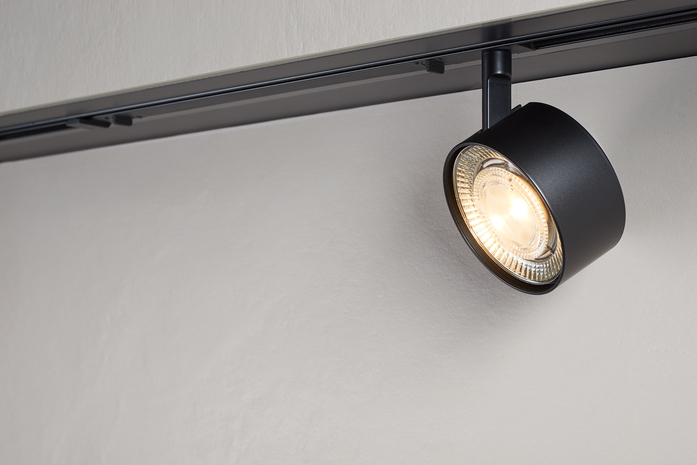

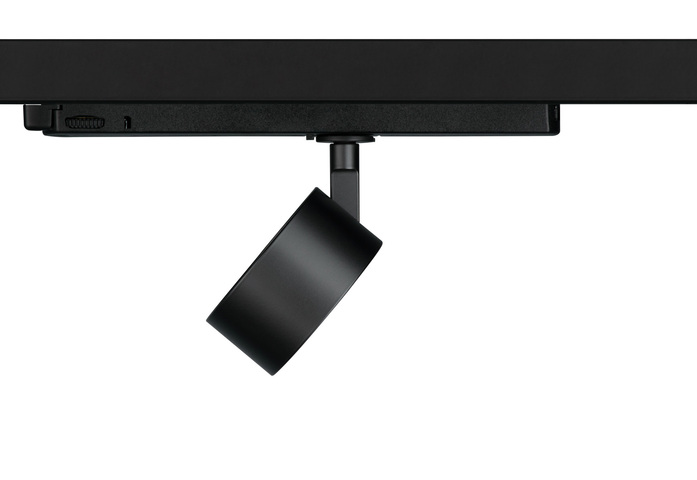

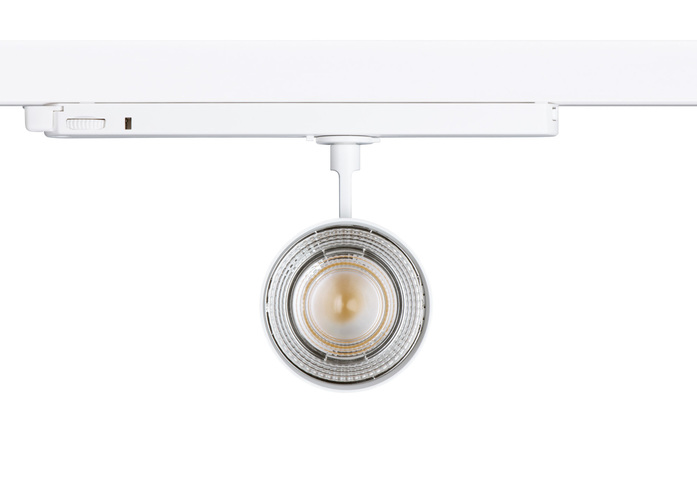

Mawa wittenberg 4 wi4 str2 schwarz 01Pfo Wi4 Str2 9016 04 190121Pfo Wi4 Str2 9016 01 190122Pfo Wi4 Str2 9005 03 190122

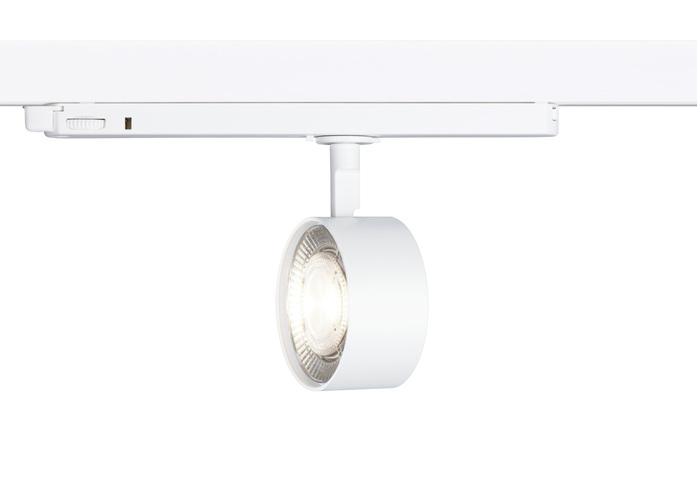

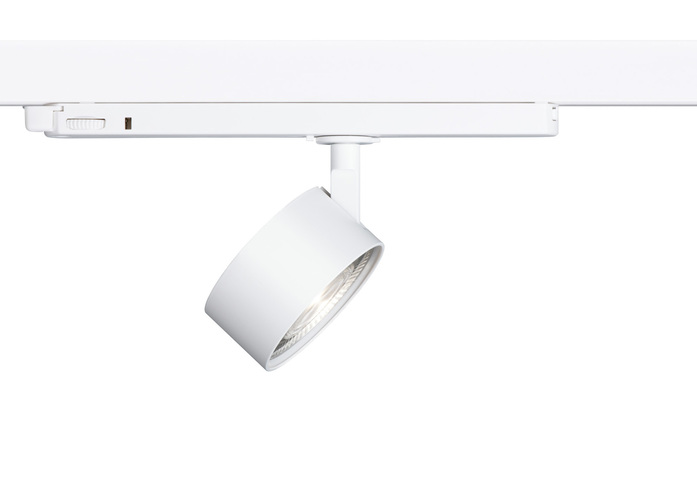

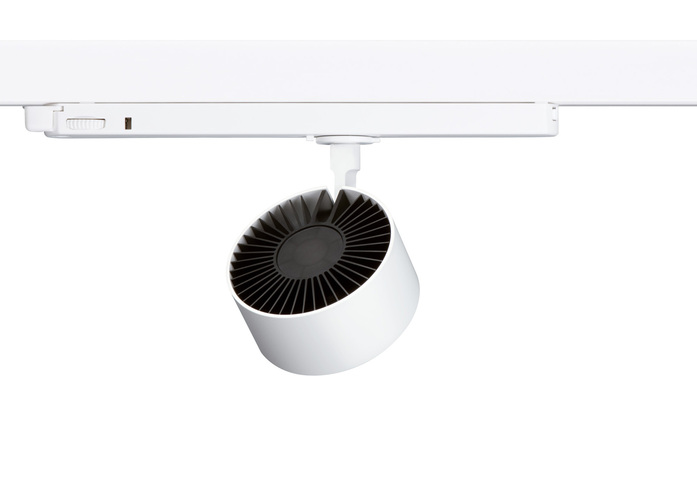

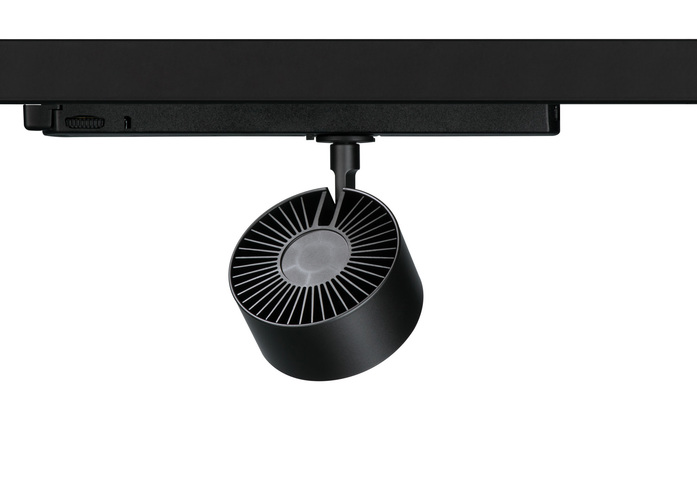

Pfo Wi4 Str2 9016 03 190121Pfo Wi4 Str2 9016 05 190124Pfo Wi4 Str2 9016 06 190124Pfo Wi4 Str2 9005 05 190122
