mawa design
wittenberg 4.0 contact track spotlight wi4-str

Presented: Light + Building 2018, Frankfurt | Year of design: 2017 | Design: Jan Dinnebier, mawa design
wittenberg 4.0 contact track spotlight wi4-str

»wittenberg 4.0« - mawa's follow up series of its successful »wittenberg« series. »wittenberg 4.0« follows that tradition and fills the huge footsteps confidently with an even more compact structure, whose filigree housing is reduced to the technically feasible - of course without visible screws and cable. With an approximately doubled light output and improved color rendition, the spotlight convinces by its large light emission surface with excellent glare control. The special optics with three different light distribution characteristics can be replaced easily using a vacuum cup or a silicone pad. If required a honeycomb grid could be used for additional glare reduction. Track-mounted spotlight »wi4-str« for Eutrac 3 Phase power track deliverable with Eutrac UniCompact Adapter or fully integrated Eutrac in-trac. Custom light colors and high CRI 98 available upon request.

colors:
RAL 9016 white matt
mawa 9005 black matt

beam angle:
spot 12°, medium 24° or flood 38° (exchangeable by means of vacuum cup or silicone pad)

Dimming options:
dimmable with 1–10 V (on the housing)
dimmable 1–10 V
DALI dimmable
trailing and leading edge dimmable

converter:
included

Lamp:
LED, 12,7 W, 700 mA, CRI typ. 92,
2700K/1100lm,
3000K/1200lm,
4000K/1350lm,
>50.000h, EEI = A++ - A,
Retail Lighting and high CRI 98 on request

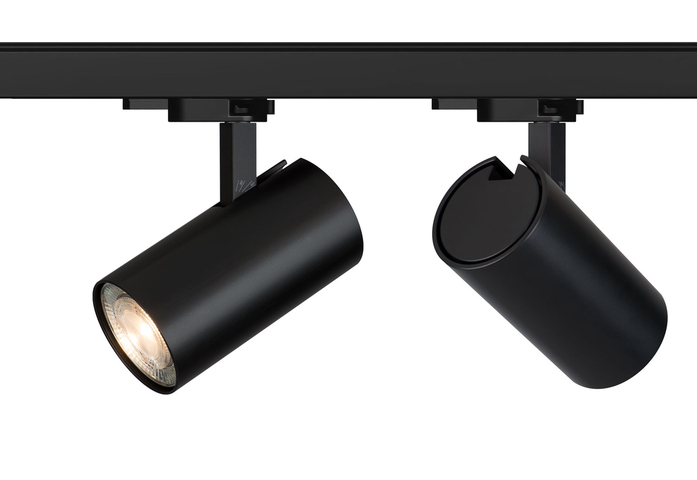

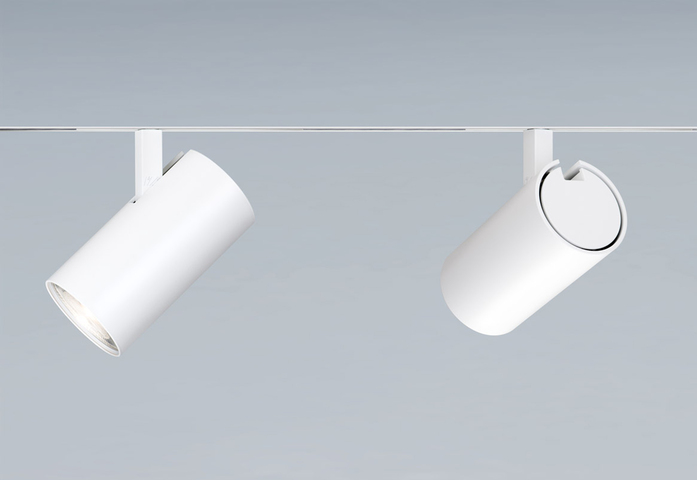

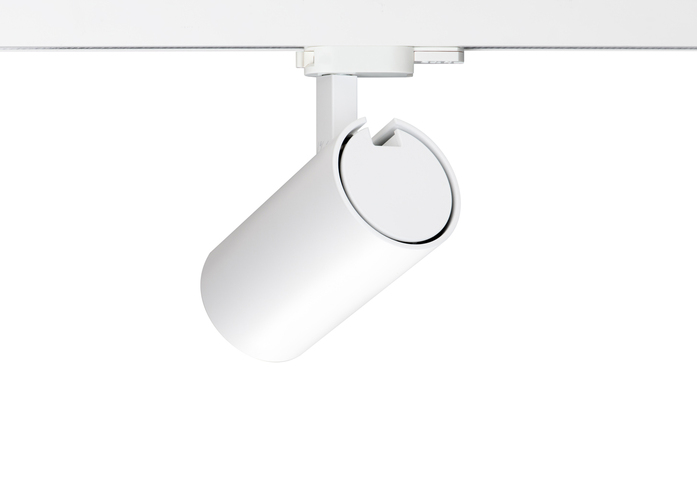

Mawa Wi4 Str 9016 Alle Intrac 170531Mawa Wi4 Str 9016 02 170531Mawa Wi4 Str 9005 2X 170619Mawa Wi4 Str 9005 2 170619

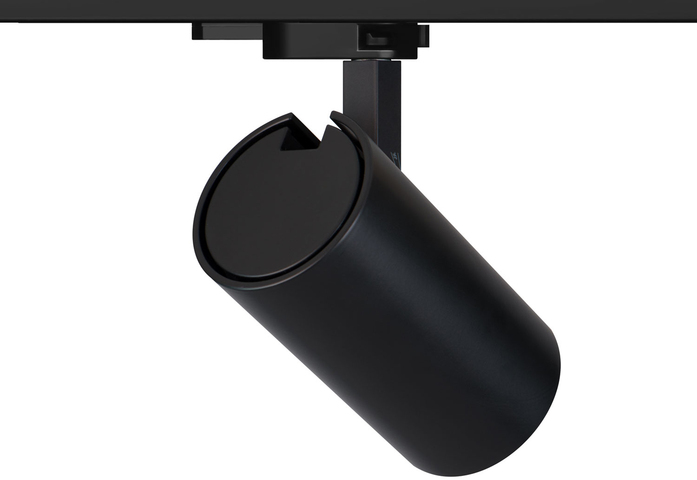

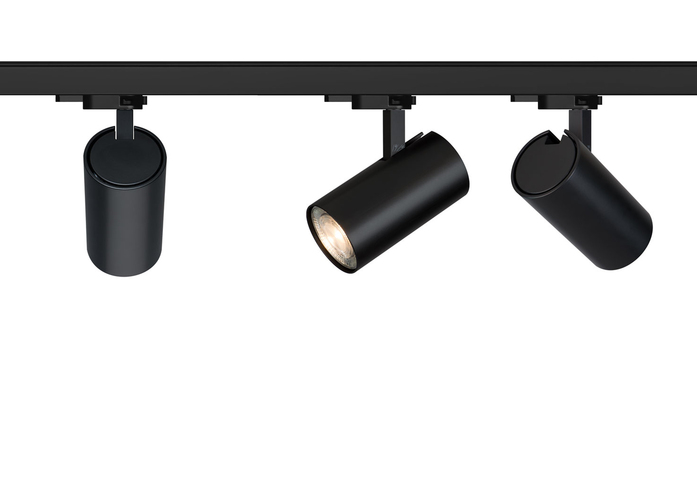

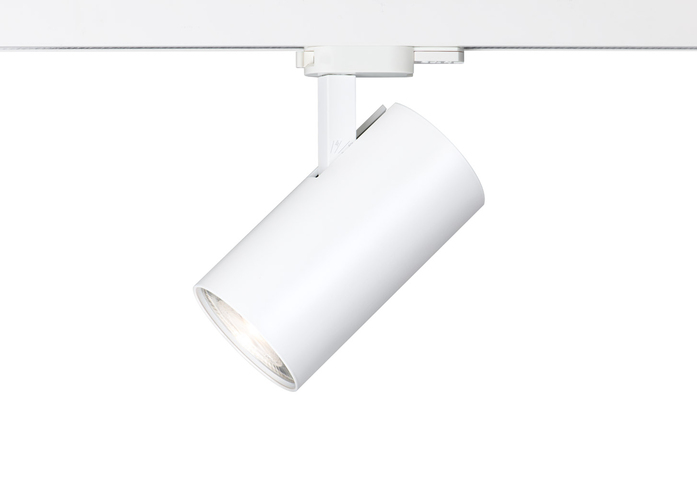

Mawa Wi4 Str 9016 01A 170531Mawa Wi4 Str 9005 3X In Trac Gr 170619Mawa Wi4 Str 9005 3X 170619Mawa Wi4 Str 9005 3 170619
