mawa design

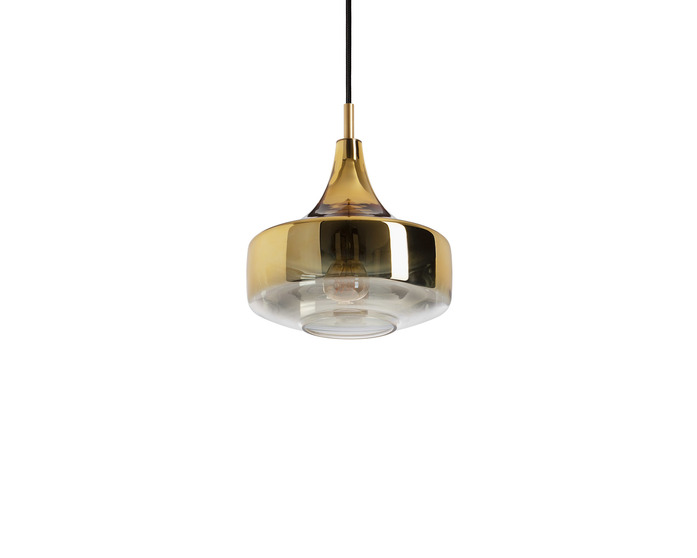

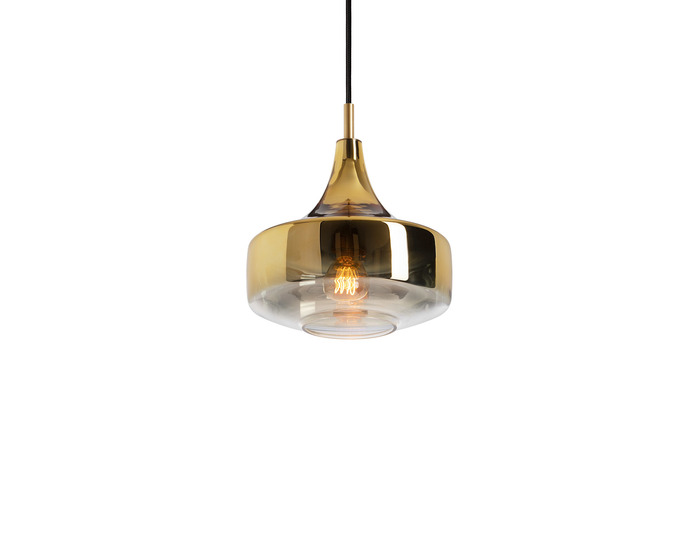

gangkofner Edition vesuvio gold

Aloys Ferdinand Gangkofner is one of the most important German glass designers of the post-war period. His glass designs are characterised by his origins in the craft environment of the glass centres in the Bavarian Forest. Some of his serial works, which he developed from the 1950s onwards for the renowned glassworks Peill & Putzler, show a strong proximity to the reduced repertoire of forms of modernism.

In close cooperation with his descendants, mawa has reissued a selection of glass pendants as a re-edition. The original designs have been slightly modified and technically adapted to today's standards. Glass holders made of translucent and shatterproof Makrolon® support the shades, and a textile cable with an internal steel core anchored in the glass holder ensures safety. The glasses are movably mounted and easy to clean. An intelligent wireless control for dimming via CASAMBI-App can be integrated on request.

Pendant luminaires in the gangkofner edition can be configured in modules. Select the shape ( click here for an overview ), type of glass, colours of the pendant and canopy, and cable. Ideally you should inform your dealer about the desired cable length when ordering. In rooms of the Wilhelminian style, gas hooks can be concealed with height-adjustable canopies.

Each lamp is unique - a note on the glass quality Glasses of the gangkofner edition are, among other things, very elaborately manufactured by hand in the triplex process and consist of three layers of glass. Slight deviations in dimensions, glass thickness or isolated air bubbles are therefore unavoidable (2.5 - 3 bubbles per 50 mm are within the tolerance). Slight colour deviations can also occur with metallised crystal glass and smoked glass. These deviations are always a sign of quality craftsmanship.

Material glass
clear glossy (clear glass)
clear / rose gold gradient (metallised clear glass)
clear / gold gradient (metallised clear glass)
clear / chrome gradient (metallised clear glass)

Material pendulum incl. canopy
Aluminium powder-coated
Brass

Material Pendulum Highlights
Aluminium powder-coated
Brass

Cable material
braided textile cable with internal steel core

Dimensions glass
∅ 266 × 252 mm

Version
E27, max. 60W

Operating area
AC 220V-240V / 50Hz-60Hz

Energy efficiency class
EEI A++ to E

Light sources
exclusive lamps

Weight
≈ 1.697 g

Colour
clear glossy
clear glossy / rose gold gradient
clear / gold gradient
clear / chrome gradient

Pendulum colour incl. canopy
white matt (RAL 9016)
black matt (RAL 9005)

Pendulum highlights (optional)
brushed brass 1
brushed brass 2
rose gold glossy 1
rose gold glossy 2

Canopy:
Single or multiple canopy

Cable colour
white
black
blue
grey

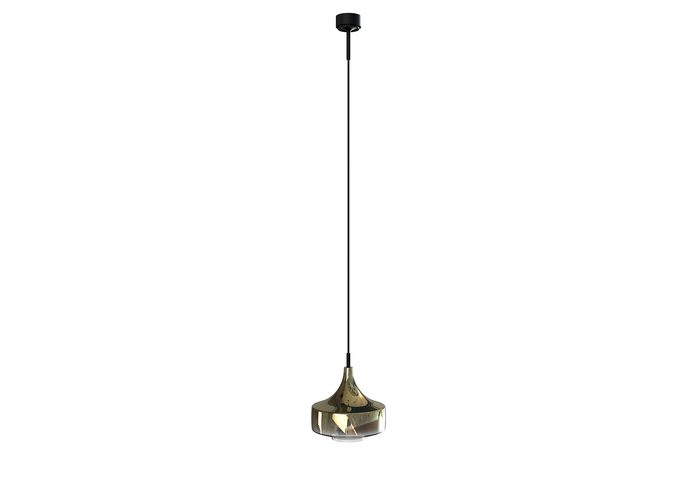

Total pendulum length incl. glass
2500 mm (standard)
individual

Control system
switchable
Casambi Bluetooth dimmable
