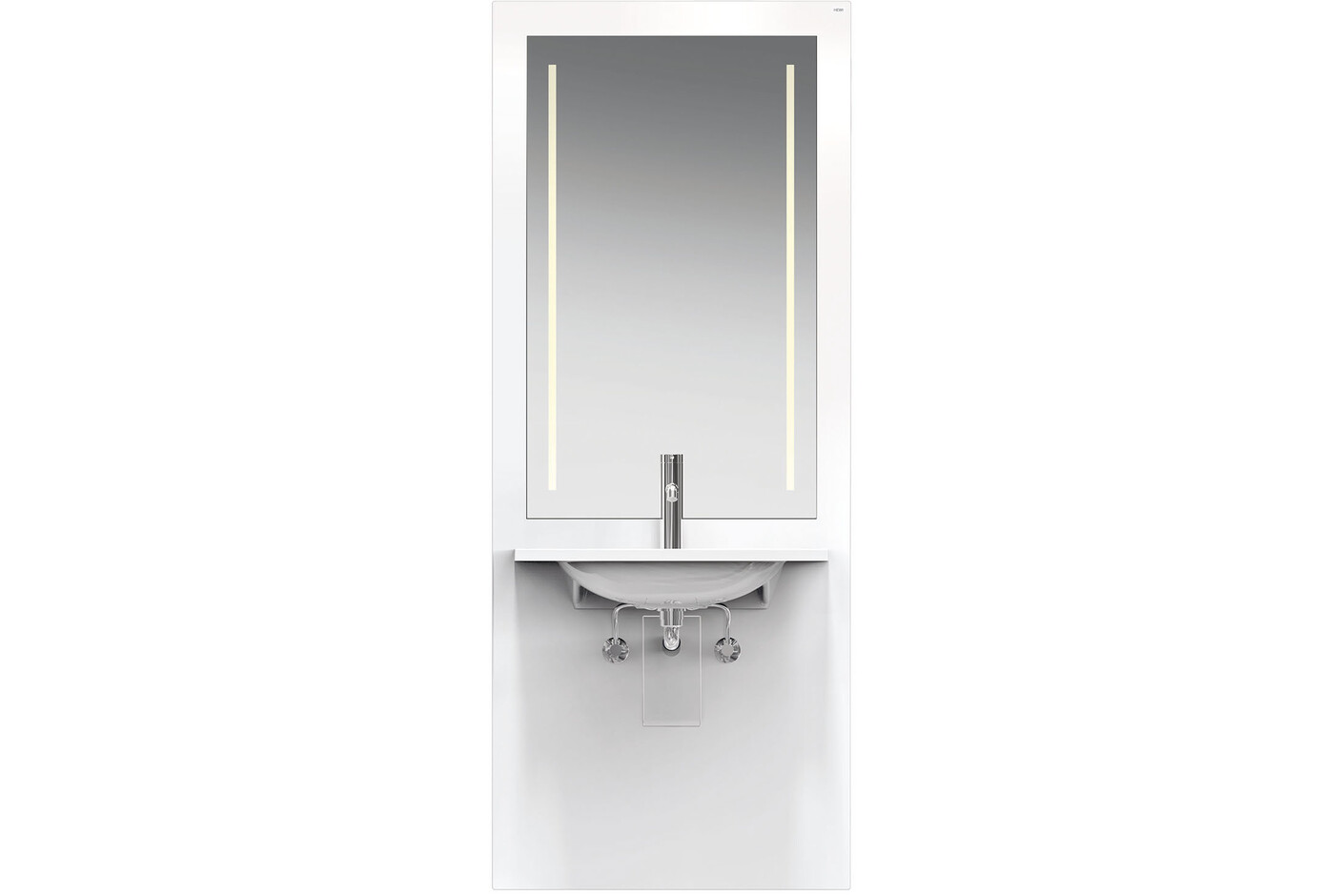

Washbasin module White, washbasin M40.11.501, LED

Stylepark-ID:	07.2372.00063
Categories:	Bath / Sanitary › Sanitary objects › Washhand basins › Single washhand basins

Product description

S 50 washbasin module

- Washbasin, add-on module with flat front elevation

- For the prewall element washbasin, electrically height-adjustable by 300 mm (S50.01.01000, to be ordered separately)

- Including washbasin M40.11.501, in-wall trap (with odour trap), LED illuminated mirror 600 mm x 1000 mm and Fidlock fixing for the remote control (retaining element 66270, to be ordered separately)

- Supplied without fittings

- LED illuminated mirror with vertical lighting is inset flush with the surface

- Light temperature is continuously adjustable from warm white to cool white by radio remote control

- Lighting dimmable

- Energy efficiency class A++, A+, A to Regulation (EU) 874/2012

- Dimensions without washbasin: W: 740 mm, H: 1838 mm, D: 25 mm

- Washbasin dimensions: W: 650 mm, H: 125 mm, D: 550 mm

- Surface made of 6 mm Plexiglas®, with white coloured backing

- Wall joint with brush seal

- Washbasin with 150 kg load capacity to EN 14688

- LED illuminated mirror: CE marking according to EMC 2004/108/EC

- Washbasin: CE marking according to Construction Products Regulation No. 305/2011

Article no.: HEWI S50.01.312010

iF DESIGN AWARD 2016

German Design Award 2017 Special Mention

UNIVERSAL DESIGN consumer favorite 2016

UNIVERSAL DESIGN expert favorite 2016

Iconic Awards 2015
