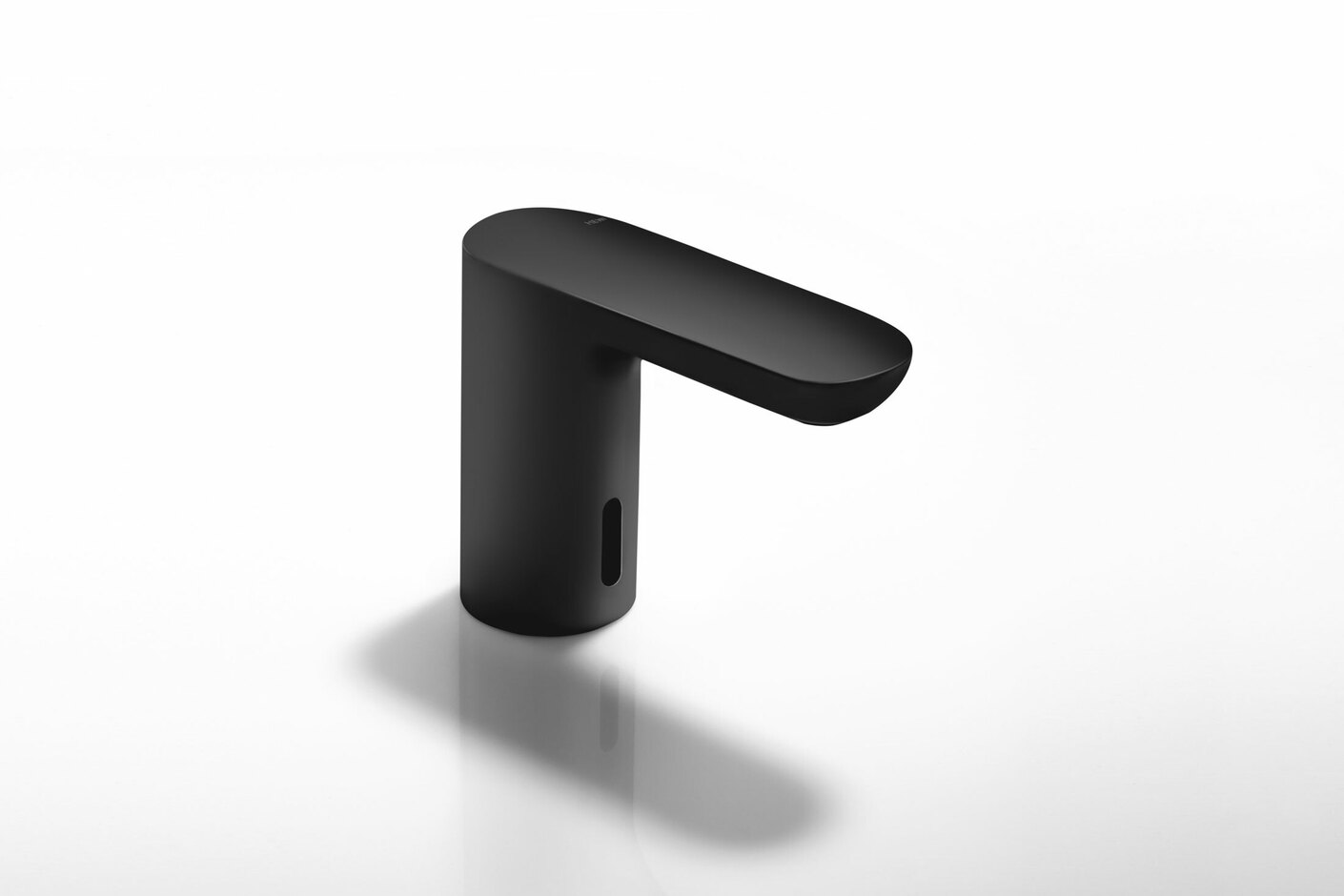

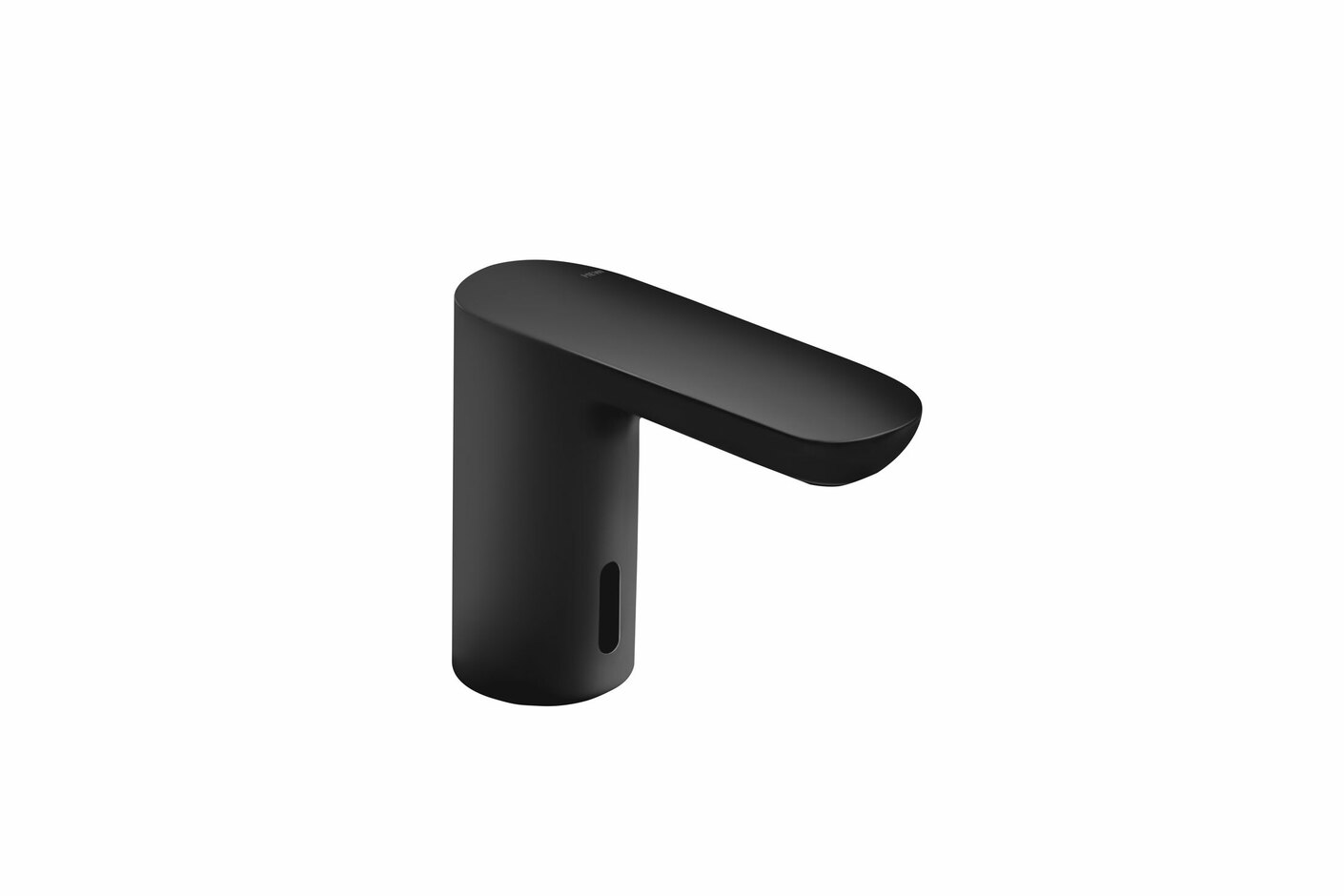

SENSORIC Electronic washbasin fitting

  • SENSORIC Electronic washbasin fitting
  • SENSORIC Electronic washbasin fitting
Stylepark-ID:06.2372.00515
Categories: Bath / Sanitary › Bathroom taps › Washstand fittings › Sensor fittings
Product description

matt black powder-coated, round
⋅ Flow rate 5 l/min
⋅ Battery operation
⋅ Use of a standard long-life lithium battery (Type CR-P2)
⋅ for cold and mixed water
⋅ Cold water: 3/8" T-distributor necessary, see accessories Art. No. 111736
⋅ Laminar jet controller with dynamic flow control 5 l/min, angle adjustable
and anti-theft protection
⋅ adjustable, active, nuisance tripping-resistant infrared sensors
⋅ Electronic module with adjustable sensing range, hygiene flushing,
continuous flushing and cleaning mode
⋅ Sensor parameters preset in the factory: after-run time: approx. 1-2 s,
continuous running: max. 4 min, sensing range: 200 mm, cleaning mode:
60 s, hygiene flushing is deactivated
⋅ asymmetrical sensing range, stable object detection
⋅ settings and service also possible by means of app via smartphone, see
accessories Art. No. 65713
⋅ safety shutdown in the event of failure of the operating voltage, userdefined settings are retained
⋅ without temperature adjustment lever: hygienic, vandal and misuse
resistant
⋅ the preset temperature lies within the comfort zone from 30°C to 36°C
⋅ Temperature settings and adjustment can be easily made during
installation due to side access
⋅ Connection via flexible pressure hoses with woven-in hot-cold marking
450 mm long, G 3/8"
⋅ integrated dirt trap screens
⋅ Brass fitting body
⋅ 118 mm high, projection 158 mm
⋅ rigid outlet
⋅ not including waste fittings
⋅ Noise class 1
⋅ suitable for thermal disinfection according to DVGW W 551
⋅ conforms EN 15091
⋅ WELL Label in preparation

All Sytem-Armaturen Products

Manufacturer:
HEWI, Germany

Design:
Hewi
2021
