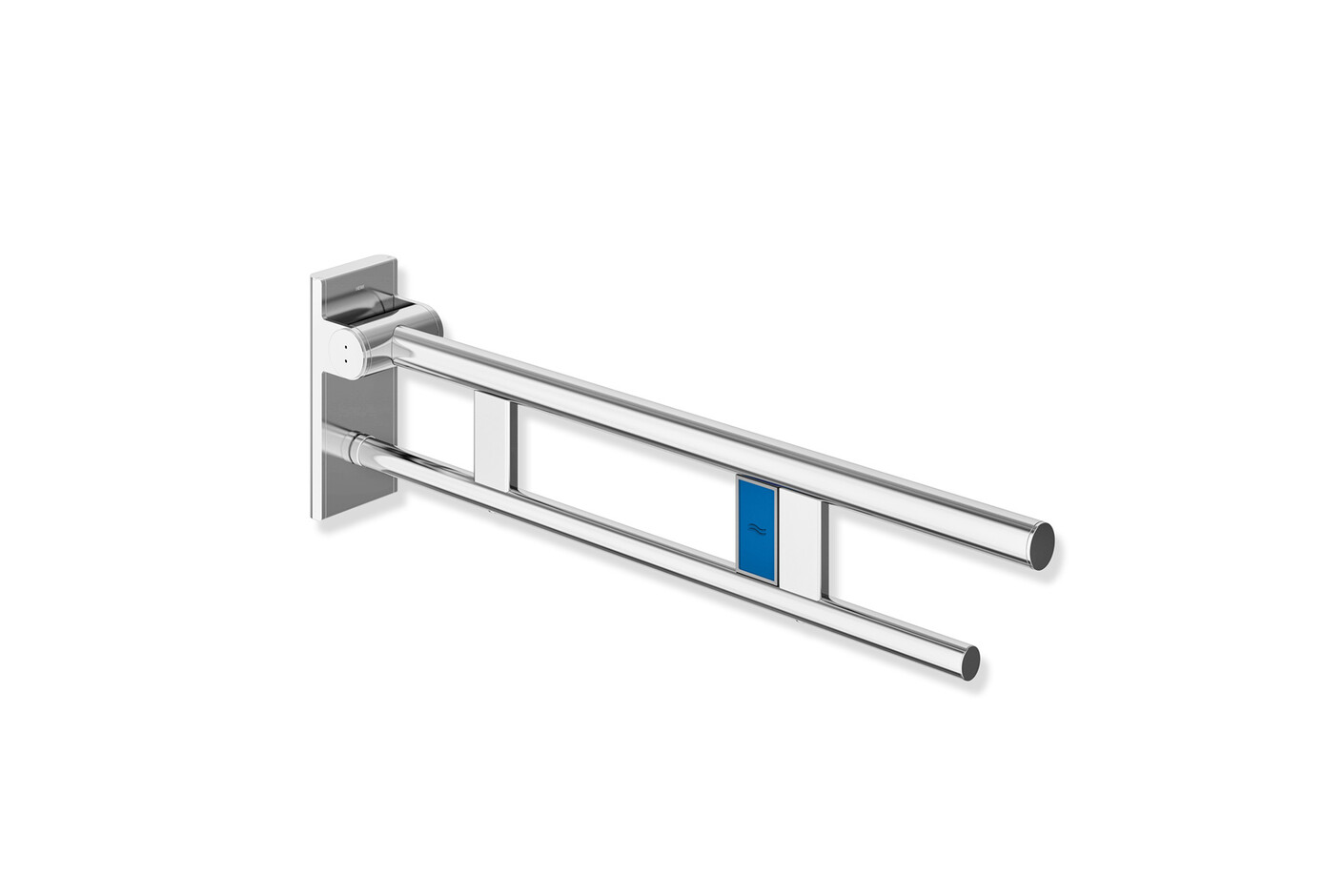

Mobile hinged support rail Duo 750 mm projection chrome

Mobile hinged support rail Duo 750 mm projection chrome
Stylepark-ID:01.2372.00234
Categories: Bath / Sanitary › Bathroom / Toilet accessories › Safety rails
Product description

Duo mobile hinged support rail, System 900

- two parallel, round gripping levels arranged on top of each other

- with toilet roll holder and radio-controlled toilet flushing mechanism

- right-hand version

- can be folded upwards and folded downwards with braked movement

- for mobile use

- for easy and flexible retrofitting on existing, preassembled mounting plate 900.50.00140, must be ordered separately

- toolless and quick installation by simple attachment of the hinged support rail

- secured by fixing screw to prevent unintentional removal

- blue button (wave symbol) for triggering the toilet flushing mechanism

- transmission frequency 868.4 MHz

- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe

- projection 750 mm, 210 mm high and 101 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm

- weight capacity up to 100 kg

- made of stainless steel, chrome

- floor supports 900.50.02040 and 900.50.02140 for retrofitting

- CE marking: Medical devices Class 1 according to Directive 93/42/EEC

- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet

Article no.: HEWI 900.50.41540
