HEWI 2021: LIFESYSTEM
5/10/2021
With the flexible LifeSystem, HEWI supports the care and independence of users. The re-design in elegant chrome, anthracite and white also scores points in terms of aesthetics.

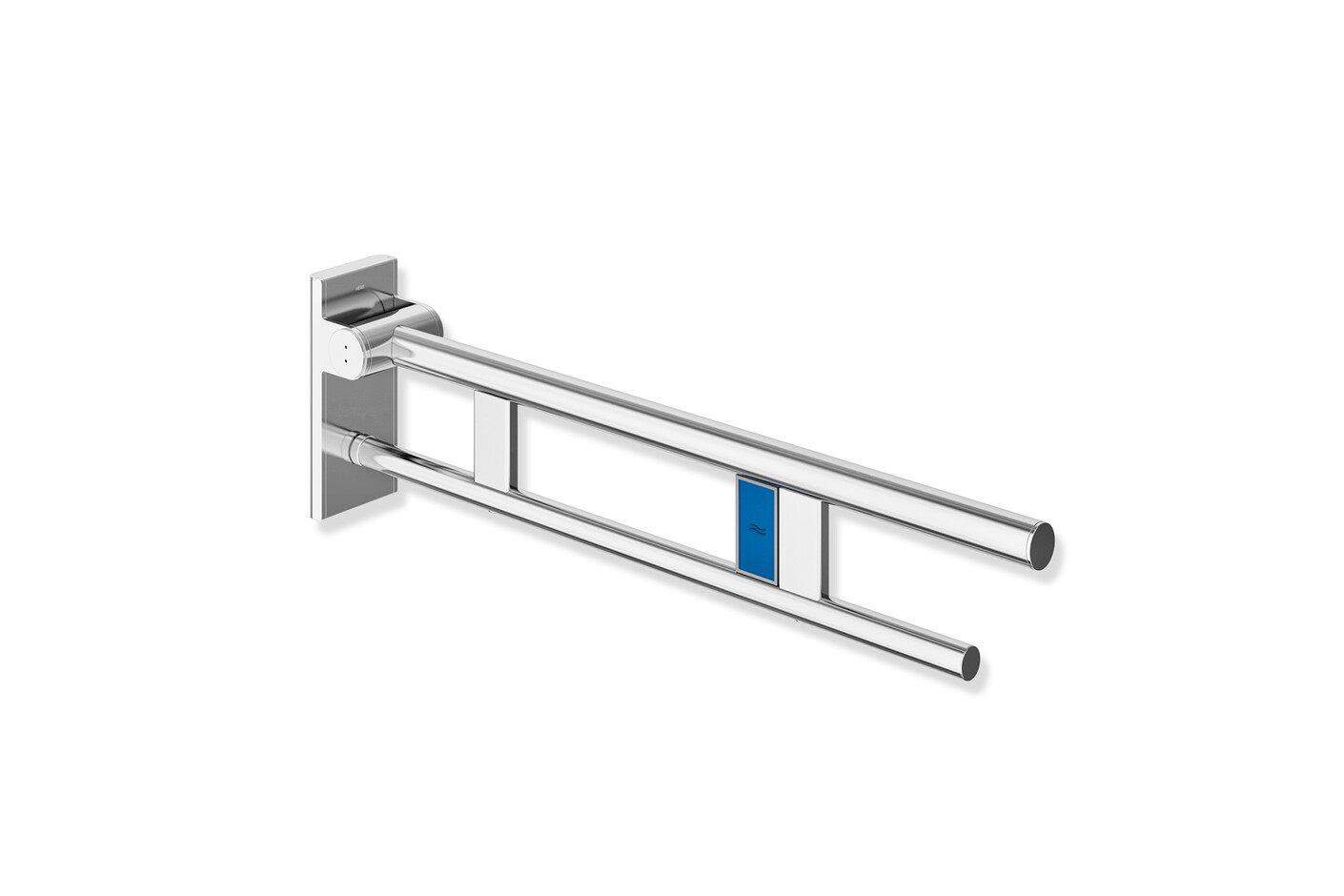

Hinged support rail Duo 750 mm projection chrome
| Stylepark-ID: | 01.2372.00231 |
|---|---|
| Categories: | Bath / Sanitary › Bathroom / Toilet accessories › Safety rails |
Product description
Duo hinged support rail, System 900
- two parallel, round gripping levels arranged on top of each other
- with toilet roll holder and radio-controlled toilet flushing mechanism
- right-hand version - can be folded upwards and folded downwards with braked movement
- blue button (wave symbol) for triggering the toilet flushing mechanism
- transmission frequency 868.4 MHz
- suitable for radio-controlled toilet flushing systems made by Geberit, Friatec, Mepa, Sanit, Viega, TECE and Grohe
- projection 750 mm, 210 mm high and 101 mm wide, top rail diameter 33.7 mm, bottom rail diameter 25 mm
- weight capacity up to 100 kg
- made of stainless steel, chrome
- for mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
- floor supports 900.50.02040 and 900.50.02140 for retrofitting
- CE marking: Medical devices Class 1 according to Directive 93/42/EEC
- fulfils the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet
Article no.: HEWI 900.50.11540
