HEWI

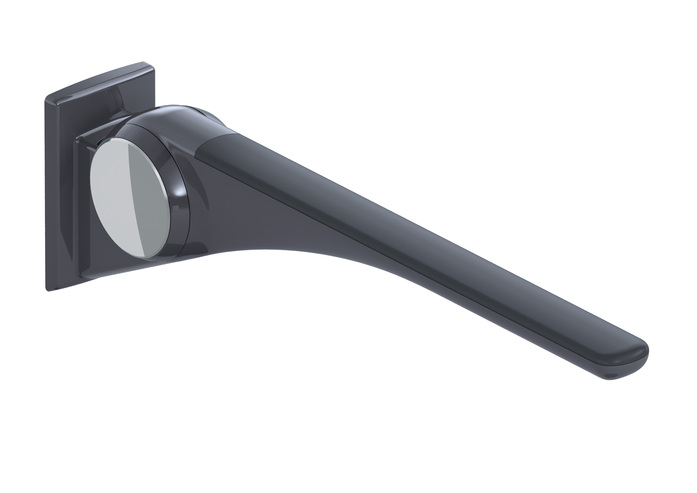

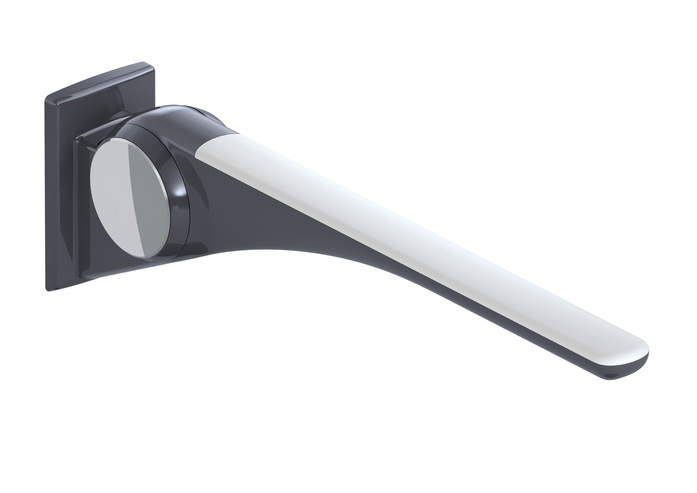

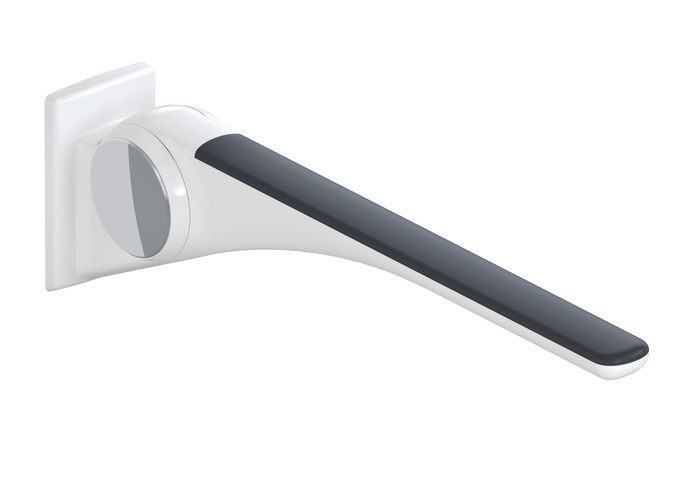

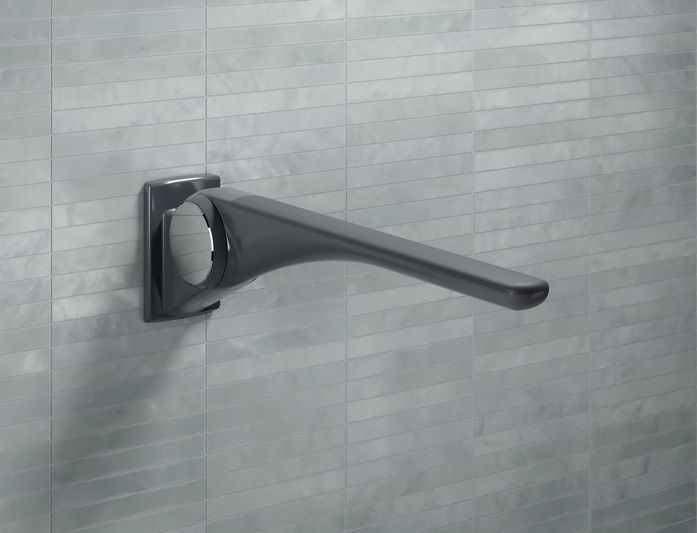

Hinged support rail Basic

-stable, single-arm folding support handle
-Non-slip and ergonomic grip pad
-for gripping, support and pulling oneself up
-high-quality plastic surface and scratch-resistant powder coating
-maximum product stiffness increases stability and gives the user a secure grip feeling
-can be folded easily up and down due to spring-loaded hinges
-low-maintenance, permanently smooth and easy moving joint, preset in the factory
-a defined stop prevents the hinged support rail from hitting the wall
-projection 750 mm, 120 mm wide, wall plate 202 mm high
-Grip pad 58 mm wide
-Aluminium cantilever arm, powder-coated in the HEWI colours signal white, glossy with plastic grip pad in SD (signal white, matt) and GU (anthracite, matt) or anthracite cantilever arm, glossy with grip pad in TB (signal white, matt) and DR (anthracite, matt), with high-gloss chrome-plated design elements
-toilet roll holder 802.50.01160, WC flushing mechanism (radio controlled) 802.50.06..., backrest 802.51.90..and height-adjustment mechanism 950.50.10260 can be retrofitted
-weight capacity up to 100 kg
-for mobile use
-quick assembly by simply hooking the folding support handle onto a separately installed mounting plate made of stainless steel, satin finish
concealed, non-corrosive and tested HEWI fixing material for different wall systems (must be ordered separately)
-CE-marking according to directive 93/42/EEC
-fulfills the requirements applicable in Belgium (CWATUPE, WVG Vlaanderen) regarding the projection of the hinged support rail at the toilet

Art. no. 802.50.40360
