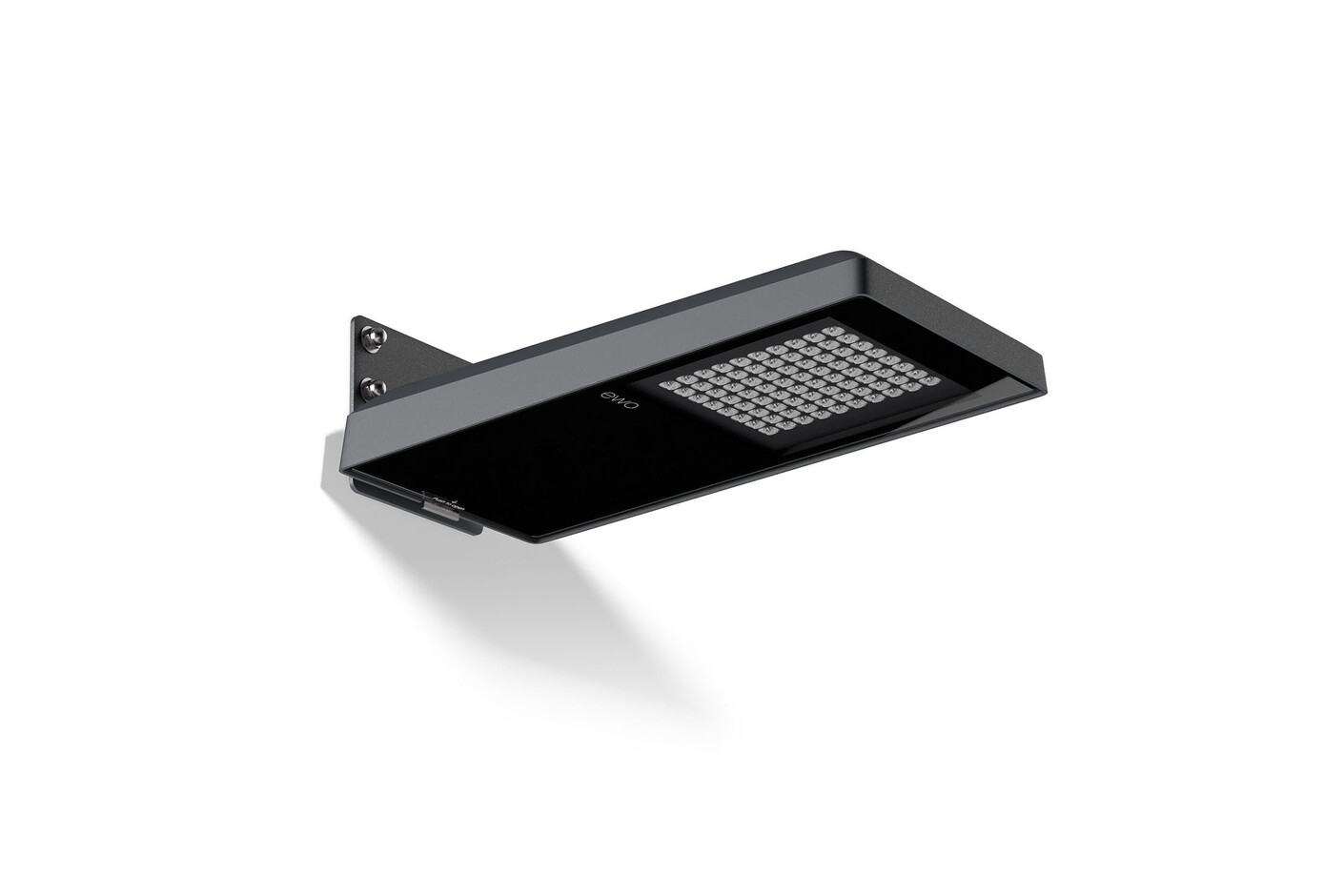

F-System S wall

F-System S wall

Presented:	Light + Building 2016, Frankfurt
Stylepark-ID:	04.1351.00078
Categories:	Outdoor lighting › Surface mounted lights › Wall mounted lights

Product description

- Housing accommodates up to 5 LED lighting units (LED Board: 32 / 48 / 64 / 80 LED)

- Current feed: 200 mA–700 mA, depending on ambient temperature (F5 max. 600 mA)

- Electronic operating device with DALI interface, 1–10 V or stand-alone programming

- Various light distributions for area, high bay, street or walkway lighting

- AH02, AP07, AS06, AS07, AS08 (also available in satiné version)

- Lens made from PMMA, with aluminum support plate

- Cover in single-pane safety glass (ESG)

- Die-cast aluminum housing, pole adapter made of aluminum, swivels from 0 to 90° in 5° increments, for pole ⌀ 76 mm or ⌀ 60 mm

- Finish: polyester powder coating, anthracite (DB 703), other colours upon request

All F-System Products

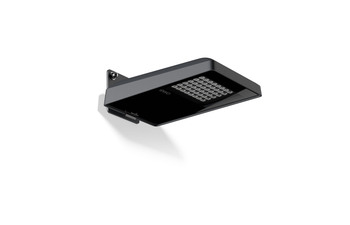

F-System XS wall

F-System XS wall

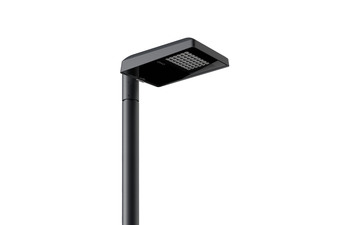

F-System XS

F-System S wall

F-System S wall

F-System M wall / ceiling

F-System M wall / ceiling

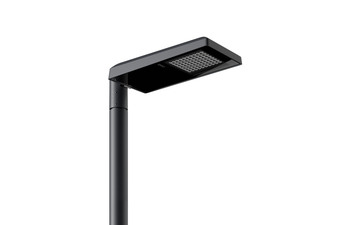

F-System S

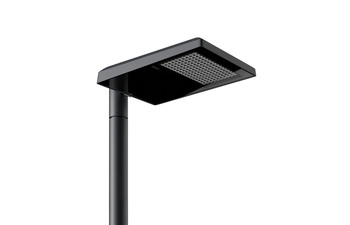

F-System M

ewo Related Content

Networked lighting

LIGHT + BUILDING 2018

Networked lighting

3/16/2018

Lighting manufacturers have already made the leap into the digital world, which means that the Light + Building trade fair in Frankfurt/Main will be focusing less on new products and more on changed fields of use and services.

Sit down please!

Sit down please!

6/5/2017

Imagine an arcade or a park without benches. Impossible. The parkbench is as important in urban spaces as salt is in soup. The most exciting models in an overview.

Good night sight

Good night sight

6/5/2017

We present luminaires for public spaces that score high in terms not only of energy efficiency, but also for their extraordinary lighting effects and elegant appearance.

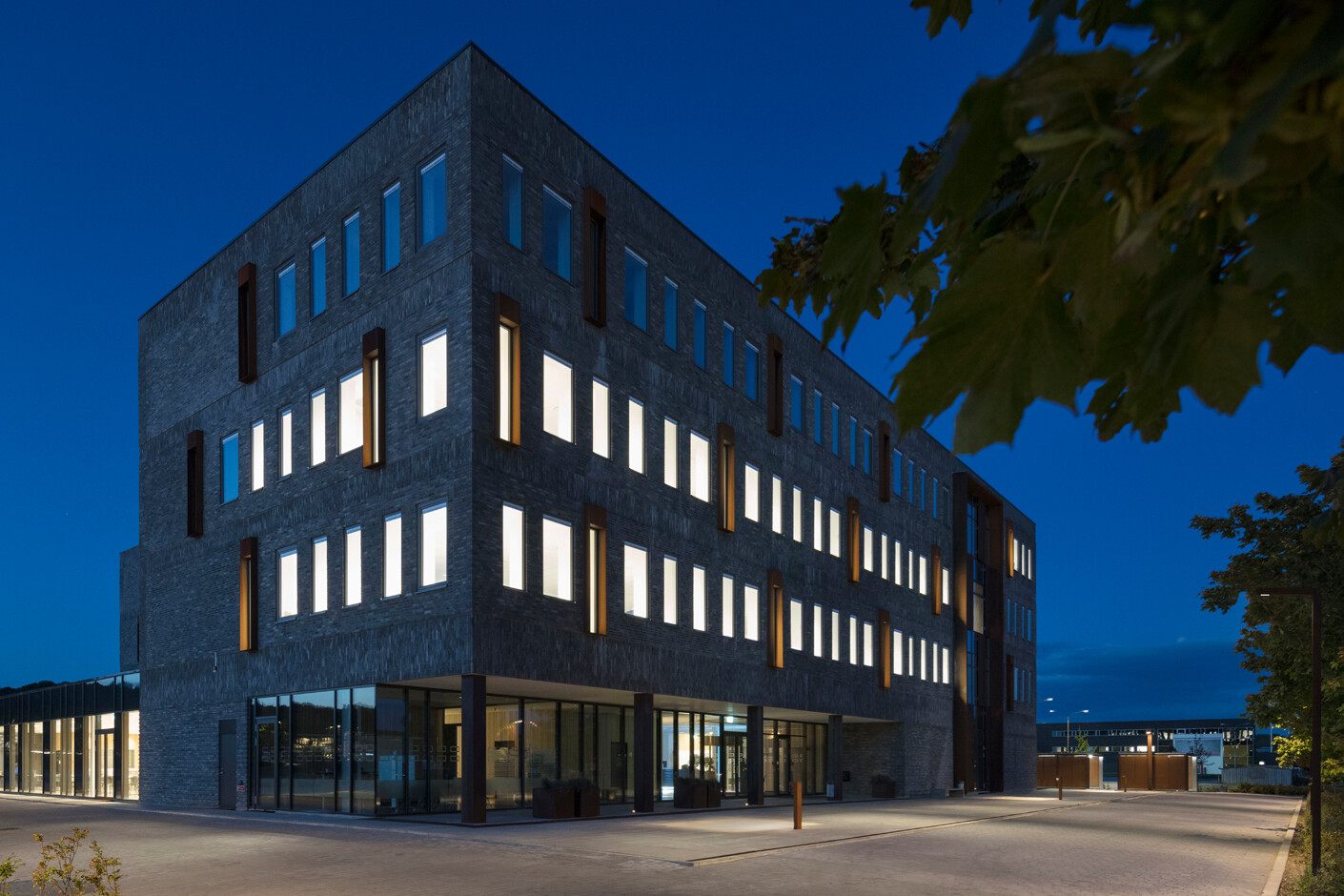

Nice and bright, please
