EchoGrid®

Year of design: 2022
EchoGrid®

EchoGrid® - 3D DESIGN FOR GRID CEILINGS

EchoGrid® is a new inlay for grid ceilings for new buildings and also for the redesign of existing ceilings. It is visibly different from conventional ceilings and audibly upgrades heavily frequented rooms. The inlays are plugged together on site and hooked into the grid ceiling without tools. The very light grid inlays can be easily removed, allowing easy access for maintenance of the building services. Complete reusability after use guaranteed - zero waste!

EchoGrid® allows ceilings ranging from understated simplicity to dramatic sculptural shapes. The creations of the ECHOJAZZ designers are only a starting point, we are happy to work out individual designs on customer request.


INNOVATIVE 3D DESIGN FOR GRID CEILINGS
WHY EchoGrid® IS ALSO SUSTAINABLE IN THREE DIMENSIONS


RECYCLED MATERIAL

EchoBoard® is the acoustic panel EchoGrid® is made of: 100% PET with a recycled content of up to 70 PET bottles per square metre. It is recyclable, is taken back and processed into new acoustic products.

CIRCULAR CONSTRUCTION

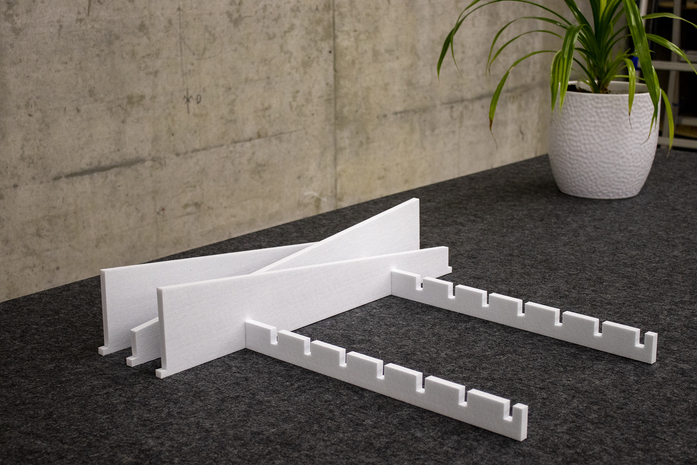

EchoGrid® modules are assembled from individual EchoBoard® slats. No mounting kit and no glue is needed, the material remains 100% unmixed and thus recyclable.

UPGRADING EXISTING STRUCTURES

An aging grid ceiling does not need to be expensively renewed, but becomes an effortlessly installed ceiling sculpture with EchoGrid®. By eliminating the need for rebuilding, waste is avoided and resources are conserved.

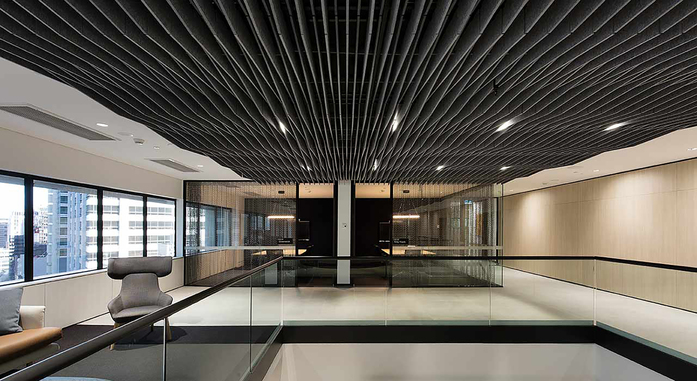

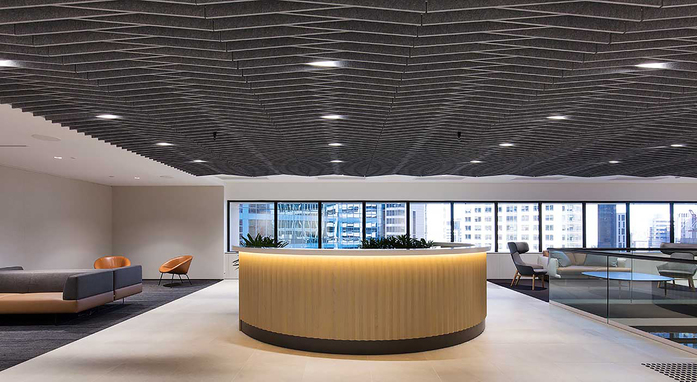

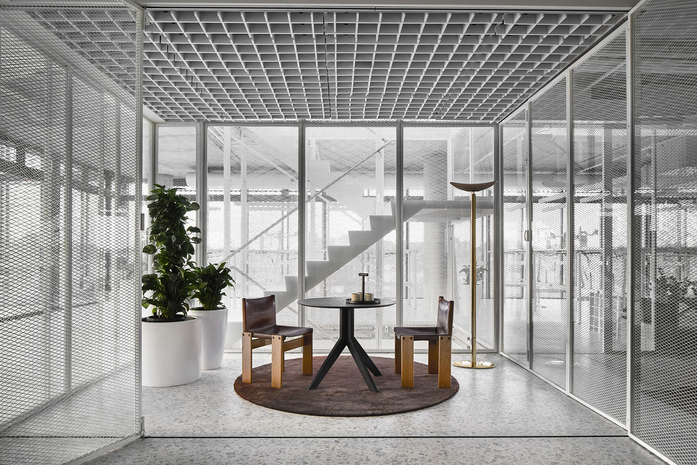

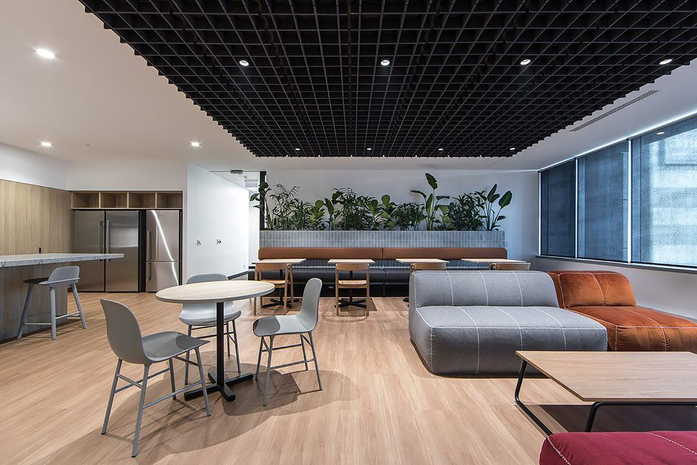

202105 Echo Grid ECHOJAZZ Matrix 11202105 Echo Grid ECHOJAZZ Matrix 08202105 Echo Grid ECHOJAZZ Matrix 01202105 Echo Grid ECHOJAZZ Matrix 03202105 Echo Grid ECHOJAZZ Interlace 19202105 Echo Grid ECHOJAZZ Interlace 18202105 Echo Grid ECHOJAZZ Matrix 02202105 Echo Grid ECHOJAZZ Interlace 14202105 Echo Grid ECHOJAZZ Interlace 12

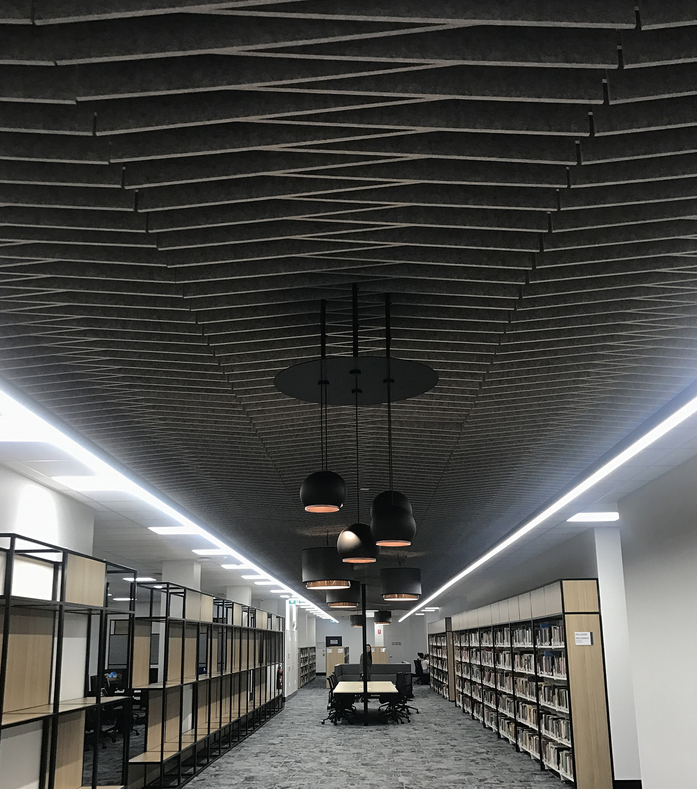

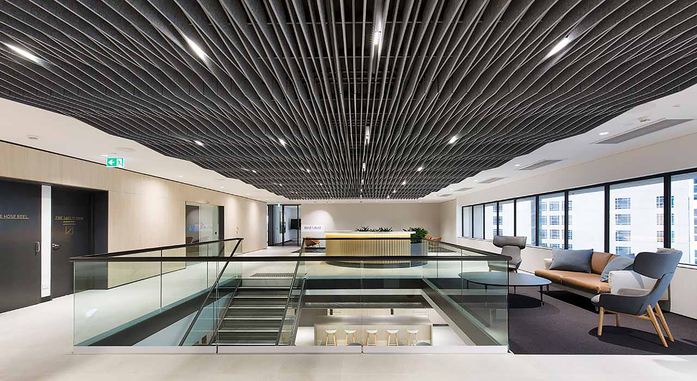

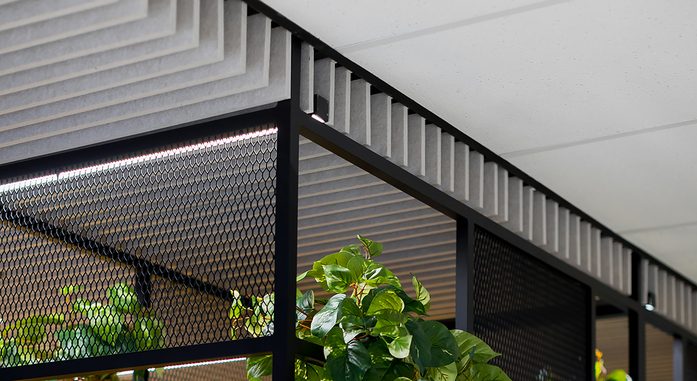

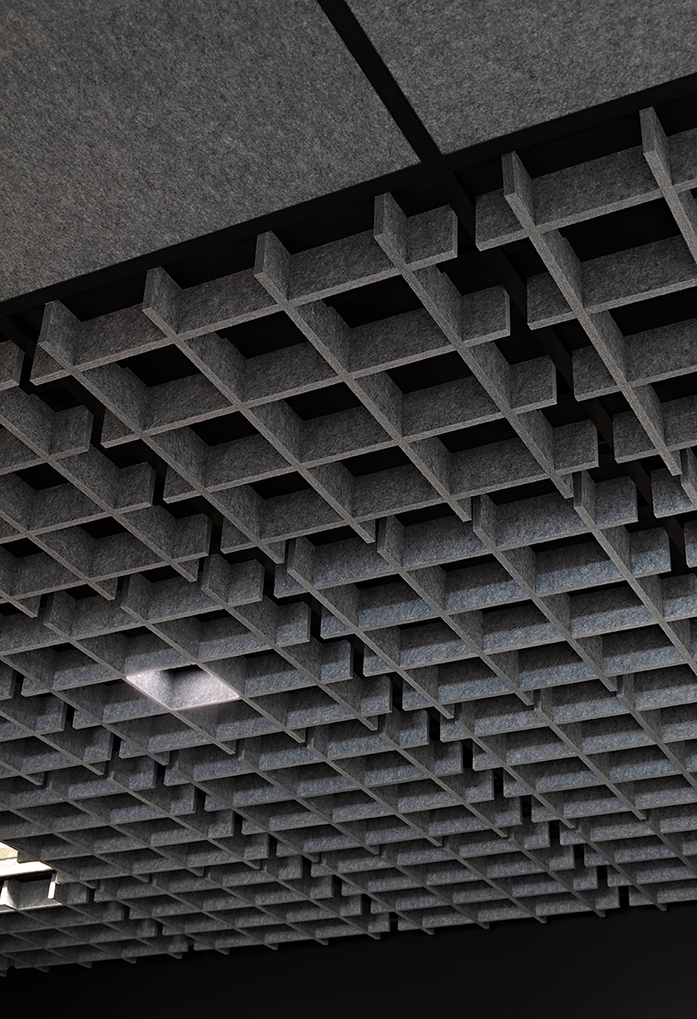

202105 Echo Grid ECHOJAZZ Interlace 16202105 Echo Grid ECHOJAZZ Matrix 05202105 Echo Grid ECHOJAZZ Plain 01202105 Echo Grid ECHOJAZZ Interlace 01202105 Echo Grid ECHOJAZZ Plain 02202105 Echo Grid ECHOJAZZ Matrix 06202105 Echo Grid ECHOJAZZ Interlace 22202105 Echo Grid ECHOJAZZ Interlace 20202105 Echo Grid ECHOJAZZ Ceiling Grid C
