Dallmer
Fire insulation element

Fire insulation element

If a fire breaks out, flames, smoke and heat can spread very quickly via the wastewater pipes and set fire to other floors of a building. That’s why there are specific requirements relating to fire protection in public buildings and residential complexes. The solution for the best possible fire protection in the drainage area is provided by the new Dallmer fire protection elements for vertical drain bodies. They meet all the necessary requirements and fire resistance classes.

One major advantage is that they come ready to install, which means that additional materials like mortar and sealing tape are not needed. Instead, they come equipped with a practical clamping device: it activates the clamp securely and firmly anchors within the core bore. This makes installation safer, simpler and faster than ever. Plus points of the new fire protection elements are their small core boring holes with diameters of 120 + 4 and 170 + 4 mm. This reduces costs and offers advantages in terms of building statics.

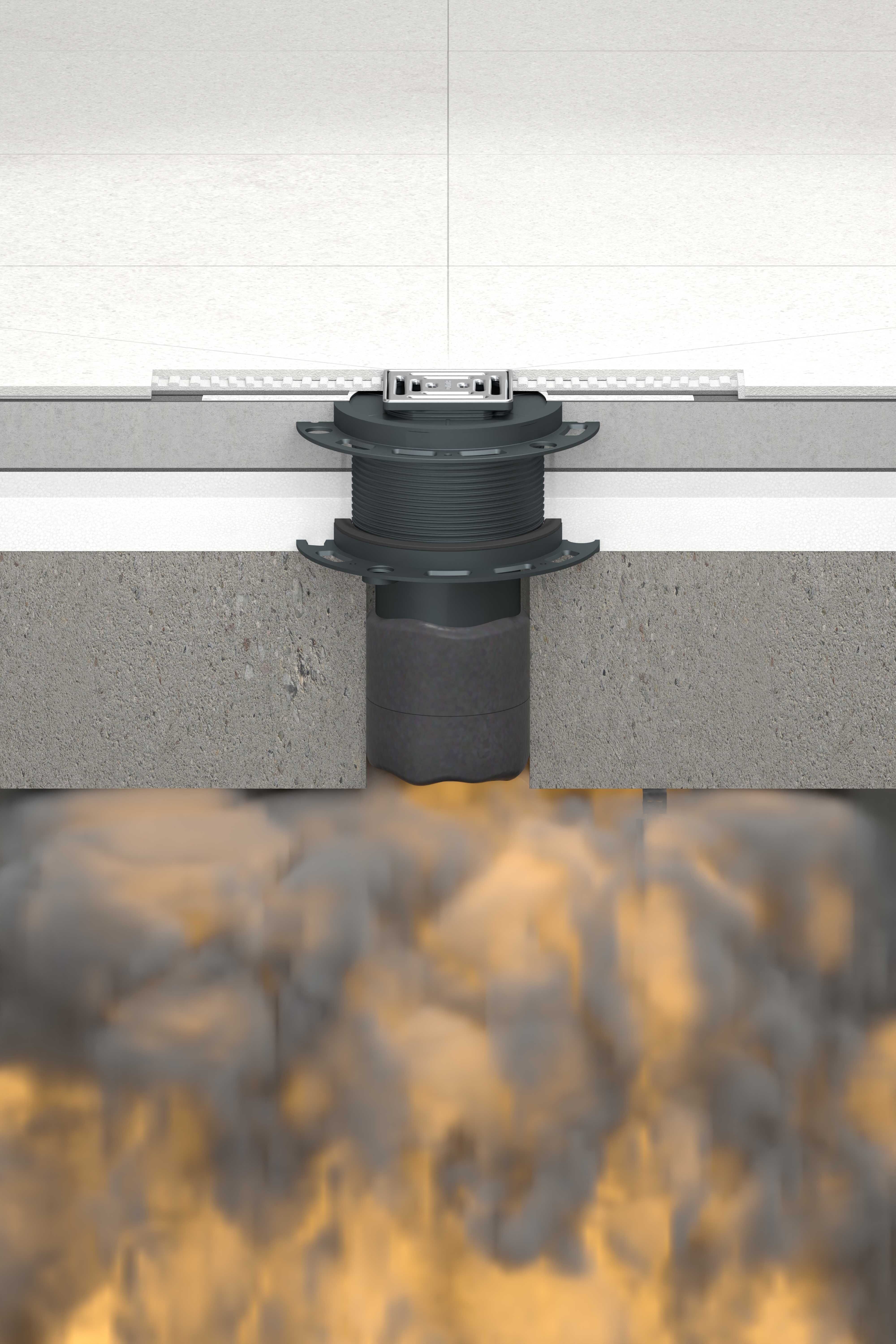

Flames, smoke and heat can quickly spread through wastewater pipes. This makes it even more important to have the best possible fire protection in the drainage area.
Specific requirements apply to fire protection in public buildings and residential complexes. Dallmer fire protection elements meet all the necessary requirements and fire resistance classes.

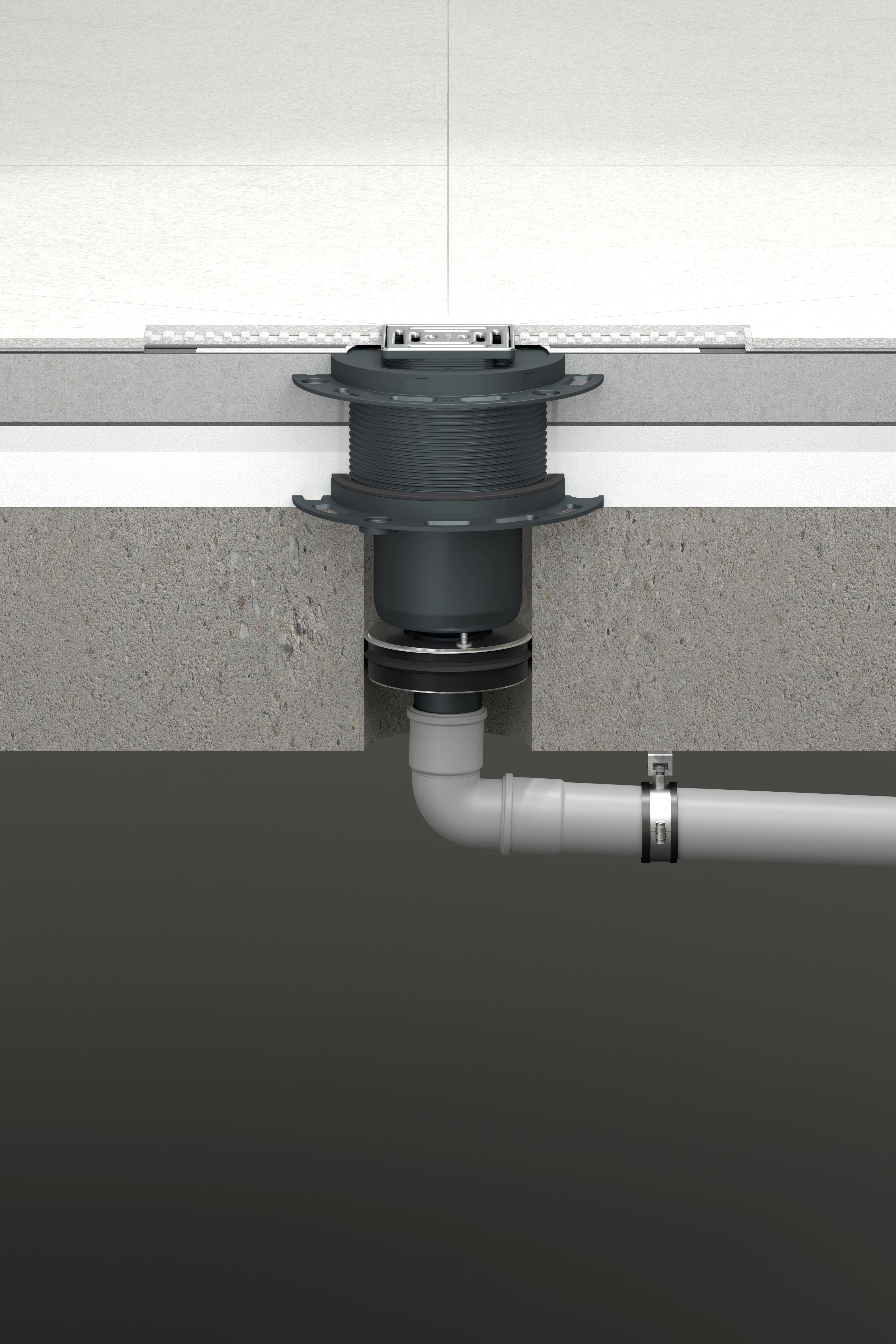

The fire protection elements in our DallDrain and DallFlex drainage systems are pipe‐independent. Plastic pipes as well as cast iron pipes can be connected.
